Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 390106

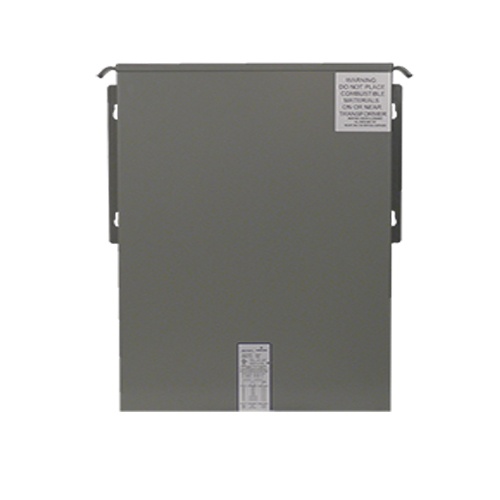

Sola HS22F5A - Single Phase, 5 kVA, Max In: 480 VAC Max Out: 48 VAC
Normally In Stock
Sola HS22F5A - Buck Boost Transformer - Max In: 480 VAC - Max Out: 48 VAC - 5 kVA - NEMA 3R - Single Phase - 7" L x 10" W x 12" H
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM SOLA FOR PRODUCT TO SHIP
$1647.97
Sale Price
$1373.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Sola HS22F5A - SolaHD Buck-Boost Transformers are versatile, compact, and cost-effective transformers designed for voltage adjustments in a range of applications. They can be configured for various voltage combinations, typically lowering or raising supply voltage by 5 to 27%. These transformers comply with NEC Article 210.9, Exception 1 when used as autotransformers, offering efficiency and cost benefits compared to isolation transformers. They can handle loads up to 20 times their nameplate rating when used as autotransformers, making them ideal for small voltage adjustments. Additionally, they are suitable for low-voltage lighting control and landscape lighting applications, being UL Listed for outdoor use
Specifications
Transformer Voltage Phases
Single Phase
Manufacturer
Sola
Transformer VoltAmp
5 Kva
Component
Buck Boost Transformer
Transformer Secondary Voltage Out
24 Volt
Transformer Primary Voltage In
240 X 480 Volt
Transformer Secondary Voltage Out
48 Volt
Features
SolaHD Buck-Boost Transformers are small, single phase, dry type distribution transformers designed and shipped as insulating/isolating transformers.
They have a dual voltage primary and a dual voltage secondary.
These transformers can be connected for a wide range of voltage combinations. The most common use is to buck (lower) or boost (raise) the supply voltage a small amount, usually 5 to 27%.
Buck-boost transformers are in compliance with NEC Article 210.9, Exception 1 when field connected as an autotransformer.
The major advantages of buck-boost transformers are their low cost, compact size and light weight. They are also more efficient and cost less than equivalent isolation transformers. When connected as an autotransformer, they can handle loads up to 20 times the nameplate rating. A buck-boost transformer is the ideal solution for changing line voltage by small amounts.
