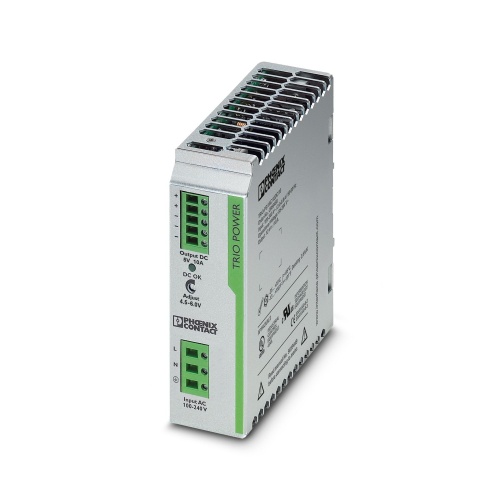

Phoenix Contact 2902646 Power supply TRIO-PS/1AC/5DC/10
Normally In Stock
Code: 36868
TRIO-PS/1AC/5DC/10 Phoenix Contact TRIO-PS/1AC/5DC/10. 5 VDC output 10 Amp output Power Supply and 85 Vac-264 Vac input voltage. Temperature range of -13 F to 158 F. Din rail mount. (5.12"H x 1.57"W x 4.53"D).
Condition: New
Usually ships Same Day or Next Day$354.71
Sale Price
$295.59
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2902646 A primary-switched TRIO POWER power supply designed for DIN rail mounting features a 1-phase input and outputs 5V DC with a maximum current rating of 10A.
Specifications
Power Supply Type
Switching
Power Supply Voltage Output
5 VDC
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Watts
50 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
10 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
TRIO
Power Supply Amperage Output Range
6-10 Amp
Power Supply Voltage Input Range
85 VAC - 264 VAC
Features
Compensation of voltage drops by means of output voltage that can be adjusted on the front
Rugged design with metal housing and wide temperature range from -25 to +70°C
Maximum operational reliability thanks to high MTBF (mean time between failures) of more than 500,000 hours and high dielectric strength of up to 300 V AC
Use the third negative terminal block as a grounding terminal block and minimize installation costs
