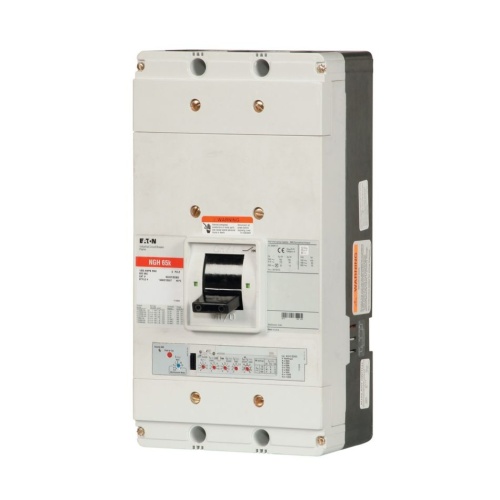

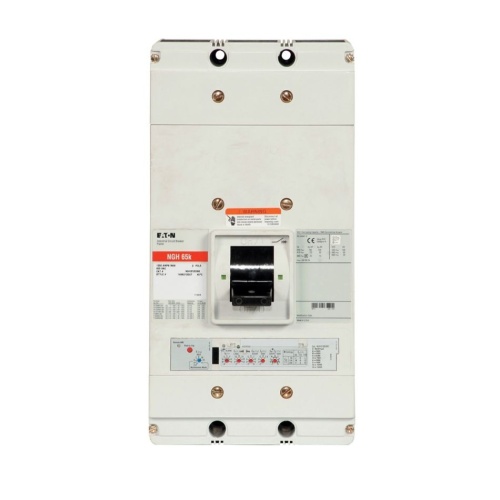

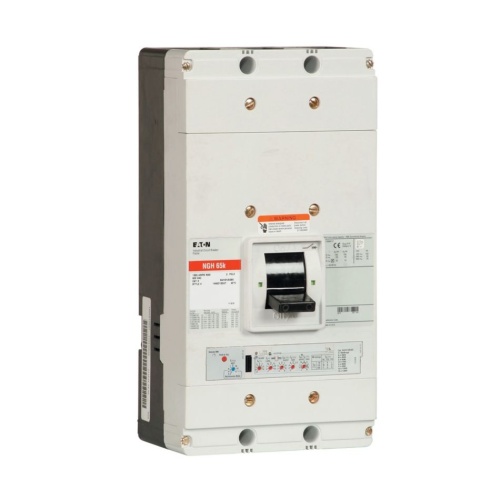

Eaton NGHF316T35WP35 Series G Series - 3P, 1600 Amp, 480 VAC
Normally In Stock
Code: 361992
Eaton NGHF316T35WP35 - NG-frame, NG, Frame only, Digitrip 310 RMS, Electronic LSG trip, 600A trip rating, 3 pole, 1600A, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, Without terminals, 50/60 Hz
Condition: New
Usually ships Same Day or Next Day$55332.85
Sale Price
$46110.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton NGHF316T35WP35 - Eaton Series G molded case circuit breakers are compact, high-performance alternatives to standard circuit breakers and fuses, suitable for global applications. They carry UL, CSA, CE, IEC, and KEMA KEUR listings and offer various features, including electronic trip units, ground fault protection, and precise coordination. These circuit breakers are tested rigorously for quality assurance, have current-limiting capabilities, and provide additional functions like thermal memory, field testing, and communication options, making them versatile and reliable for circuit protection needs.
Specifications
Poles (Molded Case Breaker)
Three Pole
Amperage (Molded Case Breaker)
1600 Amp
Maximum Voltage (Molded Case Breaker)
240 VAC
Maximum Voltage (Molded Case Breaker)
480 VAC
Interrupt Rating (Molded Case Breaker)
65 Ka 480 Volt
Interrupt Rating (Molded Case Breaker)
100 Ka 240 Volt
Manufacturer
Eaton
Component
Electronic Molded Case Circuit Breaker
Frame Type (Molded Case Breaker)
NG Frame
Features
The Eaton Series G Molded Case Circuit Breaker provides users with unparalleled performance and convenience. Choose from a selection of thermal magnetic and electronic trip units, available in current ratings that range from 15A to 2500A with voltages up to 690 VAC.
A patented contact design features high-speed “blow-open” action, resulting in superior circuit breaker performance.
This globally-rated platform offers users high interruption ratings in a compact footprint with ease of in-field configuration applicable to a wide variety of industry and regional requirements.
