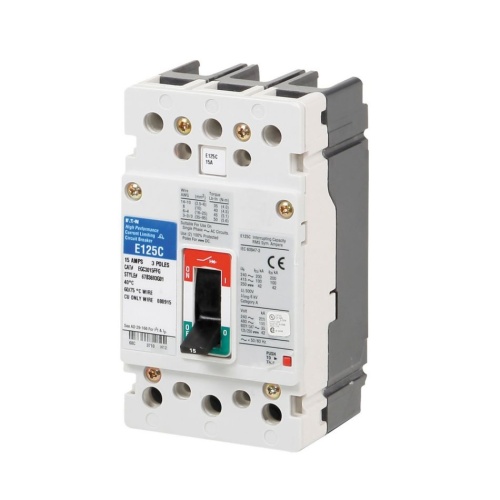

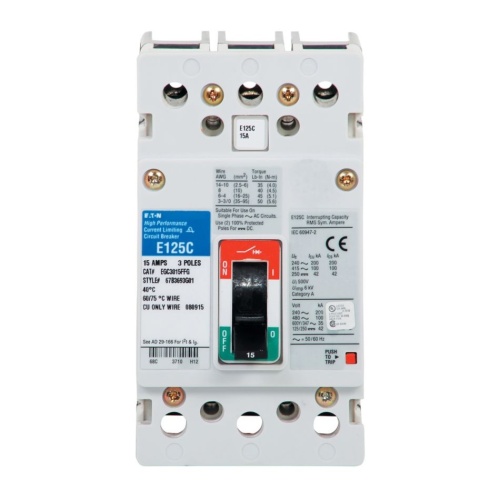

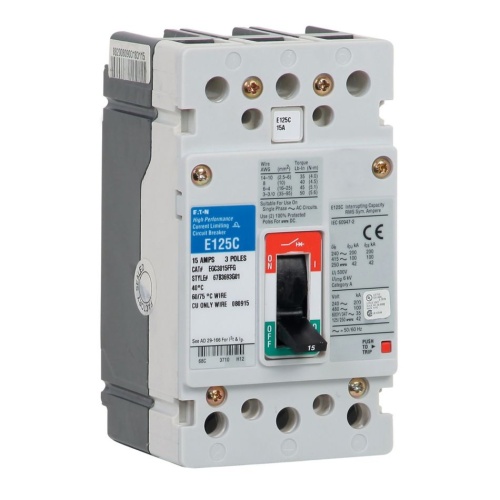

Eaton EGB3015FFWV G Series, Three Pole, 600Y/347 Max Volt, 15 Amp
Normally In Stock
Code: 355319
Eaton EGB3015FFWV - Molded Case Circuit Breaker - G Series - Three Pole - 600Y/347 VAC - 15 Amp - EG Frame
Condition: New
Usually ships Same Day or Next Day$454.38
Sale Price
$378.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton EGB3015FFWV - EG-frame, EG, Complete breaker, Fixed thermal, fixed magnetic trip type, Three-pole, 15A, 600Y/347 Vac, 25 kAIC at 240 Vac, 18 kAIC at 480 Vac, Without terminals, 50°C, 50/60 Hz
Specifications
Amperage (Molded Case Breaker)
15 Amp
Poles (Molded Case Breaker)
Three Pole
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
18 Ka 480 Volt
Interrupt Rating (Molded Case Breaker)
25 Ka 240 Volt
Frame Type (Molded Case Breaker)
EG Frame
Manufacturer
Eaton
Maximum Voltage (Molded Case Breaker)
600Y/347 VAC
Features
Compact design frees up panel space.
Common field-fit internal accessories make installation and custom configuration easy.
Advanced trip unit functionality offers a wide range of adjustment for maximum flexibility.
Patented contact design features high-speed “blow-open” action, resulting in superior performance.
Mounting hardware and lugs are included, on LG frame and below, for convenience, eliminating the need for separate parts orders.
Meets the requirements of UL, CSA, IEC, CCC and CE, providing a truly global design and worldwide acceptance.
A premier selection of trip units including thermal magnetic, electronic, and magnetic only switches is available.
Extensive UL508 SCCR listings avaliable with Eaton motor control components.
