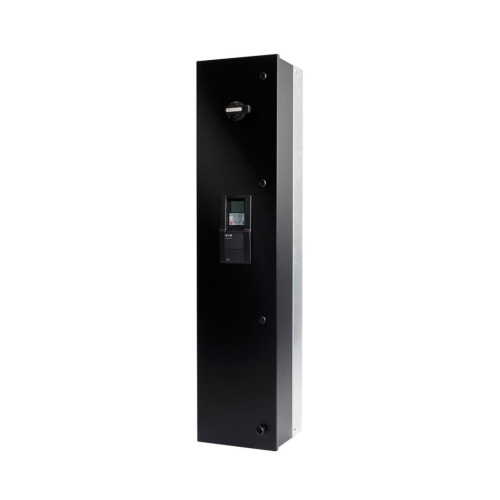

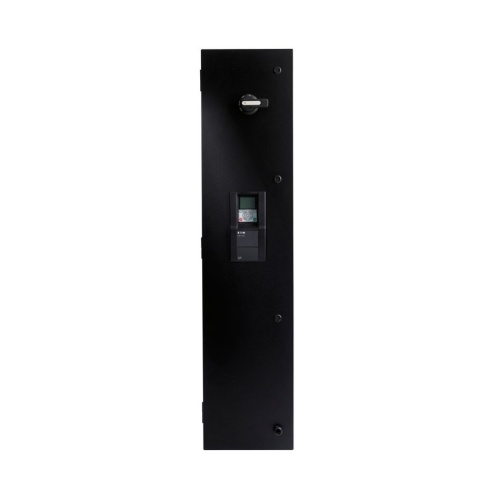

Eaton HMX34AG20521-N H-Max Series VFD - 150 HP, 205 Amp
Normally In Stock
Code: 351588
Eaton HMX34AG20521-N - 150 hp, 205A, 380-480V, Open NEMA Type 1 IP21, No brake chopper, Software A, Three-phase, Graphical panel keypad, EMC C2 input, Frame size 8
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$18452.59
Sale Price
$15377.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton HMX34AG20521-N - Eaton's H-Max Drives redefine HVAC and pump performance with tailored hardware and software. These drives minimize energy consumption, offering a thin metal capacitor design and surge protection. Featuring removable terminal blocks and versatile I/O, including RS-485, Ethernet, and expansion slots, they ensure connectivity. A real-time clock, graphic LCD, and keypad simplify operation. The Active Energy Control maximizes efficiency, supported by a Quick Start Wizard and copy/paste functionality. Pre-programmed I/O streamlines installation. Elevate efficiency and control with H-Max Drives. - 11.42" x 17.25" x 13.76" (HxWxD)
Specifications
VFD Horsepower Output
150 HP
VFD Amperage Output
205 Amp
VFD Frame Type
FR8
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
NEMA 1
VFD NEMA-IP Rating
IP21
Manufacturer
Eaton
VFD NEMA-IP Rating
Open
VFD Line
H-Max
VFD EMC Filter
With
VFD Brake
No Brake Chopper
*NON-CANCELLABLE, NON-RETURNABLE*
*NON-CANCELLABLE
*NON-CANCELLABLE, NON-RETURNABLE*
NON-RETURNABLE*
Features
Reliable: Industry leading ambient temperature operating range up to +50°C, conformal board boards, brake chopper, removable keypad
Efficient: Patented on-board Active Energy Control providing up to 10% energy savings out of the box, 5% DC Choke, input surge protection m Built in EMI / RFI filter
Easy to use: Quick Start Wizard for pre-configured applications, PC tool software, keypad with copy / paste functionality, electronic bypass, fire mode
Space saving design: compact size, open Type 12 option, on-board communications including Bacnet MS/TP and Bacnet IP and extensive I/O
