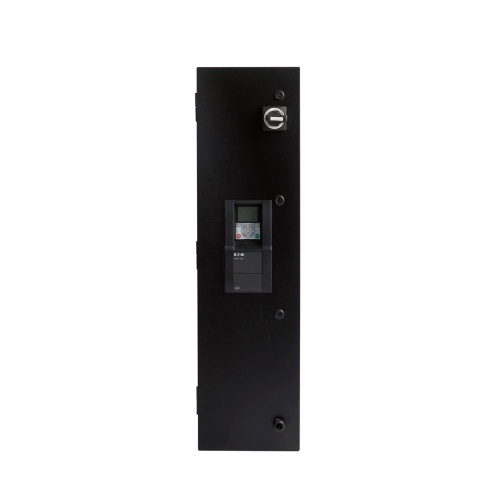

Eaton HMX04232NAP6 H-Max Series VFD - 15 HP, 42 Amp
Normally In Stock
Eaton HMX04232NAP6 - 15 hp, 42A, 230V, IntelliPass NEMA Type 1, No brake chopper, Software A, Options: Third contactor drive isolation, Frame size 6
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$6963.72
Sale Price
$5803.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton HMX04232NAP6 - Discover the H-Max IntelliPass and IntelliDisconnect Drives, revolutionizing HVAC efficiency. The IntelliPass electronic bypass, featuring 2 or 3 contactors, employs a 24 Vdc XT Series contactor with manual override. HVAC-friendly software and onboard startup wizard streamline commissioning. Encased in NEMA/UL Type 1, 12, or 3R enclosures, customizable options abound. Leveraging the H-Max drive's Active Energy Control, these drives lead energy savings. Robust construction includes XT Contactors and 22 mm Pilot Devices. The built-in electronic bypass, managed through H-Max, adds flexibility. User-friendly design elements include removable panels, door-mounted display/keypad, and accessible terminals. These solutions, exceeding UL508C requirements, redefine HVAC control. - 11.44" x 13.67" x 45.45" (HxWxD)
Specifications
VFD Horsepower Output
15 HP
VFD Amperage Output
42 Amp
VFD Frame Type
FR6
VFD Input Voltage
230 Volt Three Phase
VFD Output Voltage
230 Volt Three Phase
Manufacturer
Eaton
VFD Line
H-Max
VFD NEMA-IP Rating
Intellipass NEMA 1
VFD Brake
No Brake Chopper
Features
Reliable: Industry leading ambient temperature operating range up to +50°C, conformal board boards, brake chopper, removable keypad
Efficient: Patented on-board Active Energy Control providing up to 10% energy savings out of the box, 5% DC Choke, input surge protection m Built in EMI / RFI filter
Easy to use: Quick Start Wizard for pre-configured applications, PC tool software, keypad with copy / paste functionality, electronic bypass, fire mode
Space saving design: compact size, open Type 12 option, on-board communications including Bacnet MS/TP and Bacnet IP and extensive I/O
