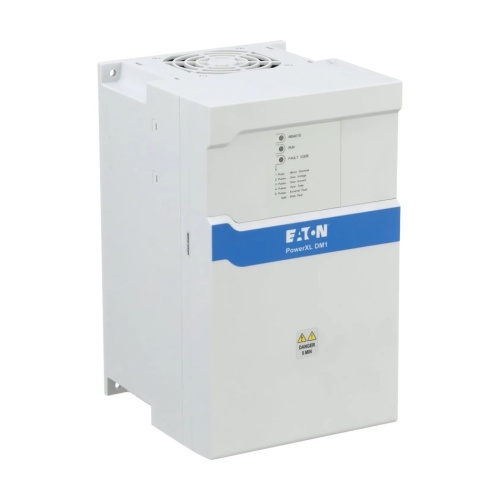

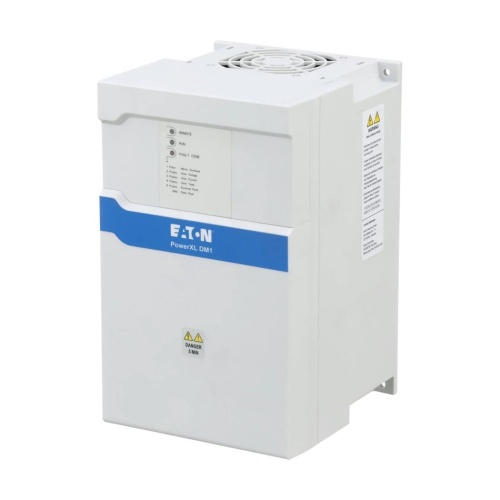

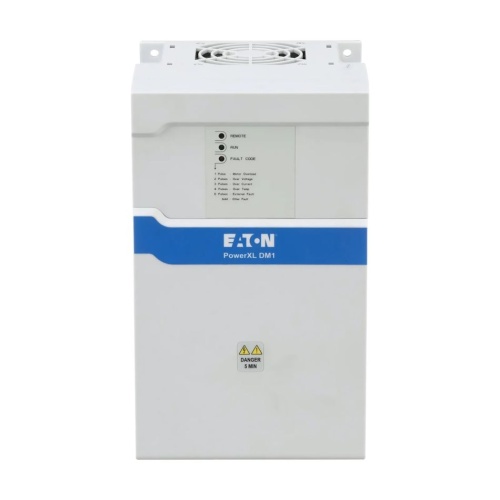

Eaton DM1-32032NB-N20B DM1 Series VFD - 10 HP, 32 Amp
Normally In Stock
Code: 341578
Eaton DM1-32032NB-N20B - Three-phase, 230 V, 32 A, Internal brake chopper, IP20, No ST0 and no ethernet communications
Condition: New
Usually ships Same Day or Next Day$1895.71
Sale Price
$1579.76
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DM1-32032NB-N20B - Introducing the DM1 Micro Inverter from Eaton - a rugged and versatile addition to machinery applications. Suitable for pumps, fans, conveyors, and general machine building, it expands our offerings for a range of tasks. With the DM1Pro version's PROFINET integration, parameters can be adjusted effortlessly. Operating at various voltages and currents, the DM1Pro features STO safety, compact IP20 design, built-in PI controller, Bluetooth, web server, and multi-pump compatibility. Its robustness extends to harsh environments (-30°C to +50°C), while Bluetooth enables easy communication. Discover functionality and efficiency in the compact Eaton PowerXL DM1 Micro Inverter.
Specifications
VFD Horsepower Output
10 HP
VFD Amperage Output
32 Amp
VFD Frame Type
FR4
VFD Input Voltage
230 Volt Three Phase
VFD Output Voltage
230 Volt Three Phase
VFD NEMA-IP Rating
IP20
Manufacturer
Eaton
VFD Line
DM1
VFD Brake
With Brake Chopper
Features
Ease of use: Easy Startup Wizard, PC Tool software, integrated Bluetooth, four built-in applications, diagnostics, local/remote button.
Space-savings: Compact size, NEMA 1 kit option, on-board ethernet and serial based communication and I/O
Certifications: UL, CE, cUL, RoHS, C-Tick, TUV
Energy optimization: Permanent Magnet Motor Control, Active energy control algorithm, input surge protection, EMI/RFI filter built-in (optional)
Reliability: High overload (CT) and low overload (VT) rated, conformal coated boards, brake chopper circuit, 50°C rating (60°C de-rating)
Pro STO and sensorless vector control
