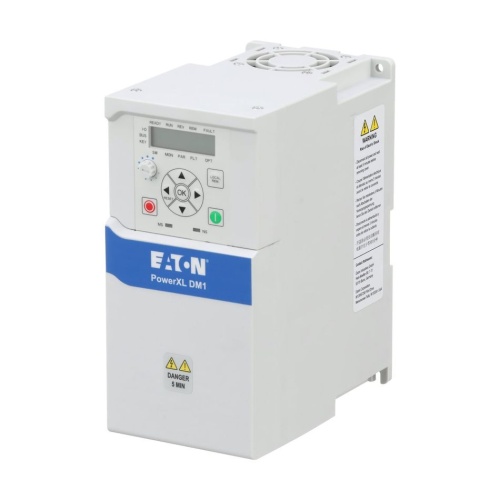

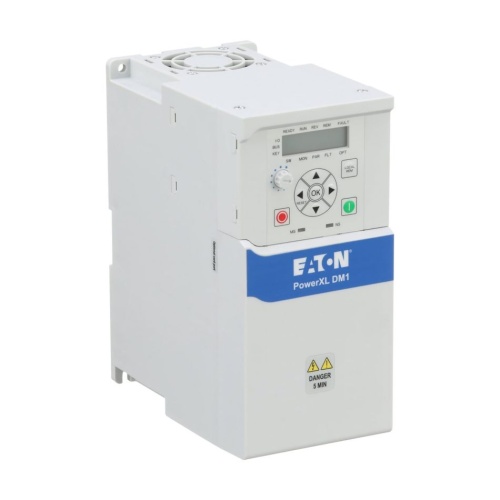

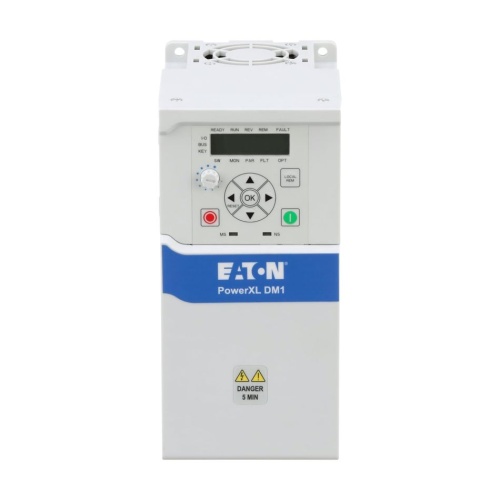

Eaton DM1-32011NB-S20S DM1 Series VFD - 3 HP, 11 Amp
Normally In Stock
Code: 341567
Eaton DM1-32011NB-S20S - Three-phase, 230 V, 11 A, Internal brake chopper, Multi segment LCD display, IP20, ST0 SIL2 and ethernet I/P, Modbus TCP onboard
Condition: New
Usually ships Same Day or Next Day$754.64
Sale Price
$628.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton DM1-32011NB-S20S - Introducing the DM1 Micro Inverter from Eaton - a rugged and versatile addition to machinery applications. Suitable for pumps, fans, conveyors, and general machine building, it expands our offerings for a range of tasks. With the DM1Pro version's PROFINET integration, parameters can be adjusted effortlessly. Operating at various voltages and currents, the DM1Pro features STO safety, compact IP20 design, built-in PI controller, Bluetooth, web server, and multi-pump compatibility. Its robustness extends to harsh environments (-30°C to +50°C), while Bluetooth enables easy communication. Discover functionality and efficiency in the compact Eaton PowerXL DM1 Micro Inverter.
Specifications
VFD Amperage Output
11 Amp
VFD Horsepower Output
3 HP
VFD Input Voltage
230 Volt Three Phase
VFD Output Voltage
230 Volt Three Phase
VFD NEMA-IP Rating
IP20
Manufacturer
Eaton
VFD Frame Type
FR2
VFD Line
DM1
VFD Brake
With Brake Chopper
Features
Ease of use: Easy Startup Wizard, PC Tool software, integrated Bluetooth, four built-in applications, diagnostics, local/remote button.
Space-savings: Compact size, NEMA 1 kit option, on-board ethernet and serial based communication and I/O
Certifications: UL, CE, cUL, RoHS, C-Tick, TUV
Energy optimization: Permanent Magnet Motor Control, Active energy control algorithm, input surge protection, EMI/RFI filter built-in (optional)
Reliability: High overload (CT) and low overload (VT) rated, conformal coated boards, brake chopper circuit, 50°C rating (60°C de-rating)
Pro STO and sensorless vector control
