Baldor FPM2514T-5 - OPSB, 3 Phase, 20 HP , 60 Hz
Normally In Stock
Code: 314428
Baldor FPM2514T- 5 - Open Slotted Band - 3600 RPM - 575 Volt - 18.5 Amp - 20 HP - Steel - 254T Frame - Class F Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$2913.97
Sale Price
$2428.31
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor FPM2514T-5 - The General Purpose motors offered by Baldor-Reliance® are single phase and three phase industrial motors designed to surpass the energy efficiency standards in the United States, Canada, and Mexico. These motors boast high starting torque, overload capacity, and exceptional reliability. They come in various enclosure constructions, ranging from open designs for moderate water and dust exposure to cast iron designs for harsh environments with water, dust, and corrosive elements. The Super-E® motors offer NEMA Premium efficiency and are ready for use with inverters, featuring wide variable torque speed ranges as a standard feature. Additionally, these motors are backed by a 3-year warranty, ensuring longevity and customer satisfaction. For any special requirements beyond the listed capabilities, customers are advised to consult their sales representative.
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Frame Model
254T
Motor Horsepower
20 HP
Motor Voltage
575 Volt
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor RPM's
3600 RPM
Motor Amperage (Full Load)
18.5 Amp
Motor Enclosure Type
Open Slotted Band
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
Fire Pump motors are for use on fire pumps installed per NFPA-20. All motors meet UL requirements (File # E481231) in open drip proof enclosures designed for relatively clean and dry environments.
Designed for 50/60Hz operation and available in 200/400V, 230/460V, and 460V configurations. Offered in both horizontal and vertical mounting options

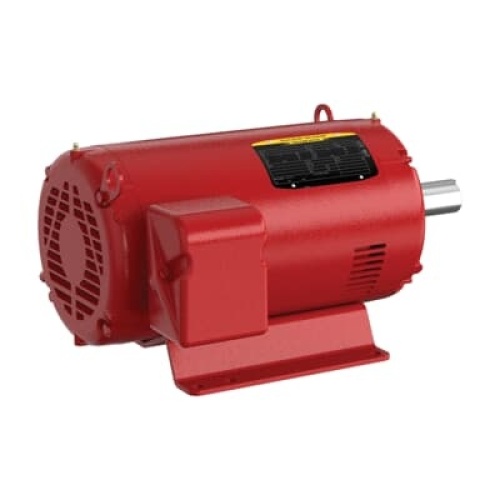

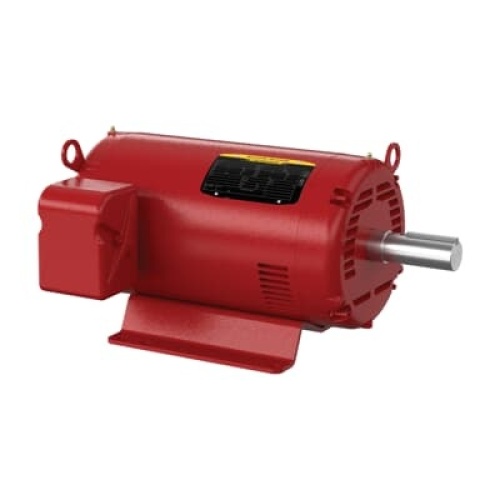

Baldor-Reliance fire pump motors are painted epoxy RAL3002 (Carmine Red) primarily for high visibility and standardization with codes and regulations to NFPA (National Fire Protection Association)
All motors 20Hp and above are 12-lead designs, allowing for wye-delta, DOL or part-winding starting methods to reduce starting current, minimize electrical stress, and ensure reliable emergency readiness
Oversized ball bearings with a locked drive-end (DE) bearing, designed for the pumping industry. Engineered for versatile mounting in any configuration
Baldor-Reliance® motors meet or exceed all efficiency requirements for US, Canada and Mexico regulations.
