Code: 313970

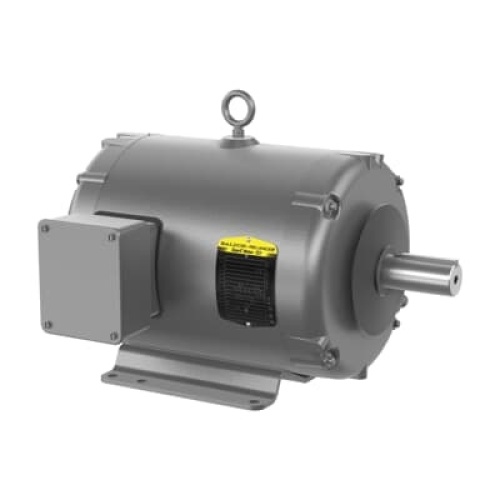

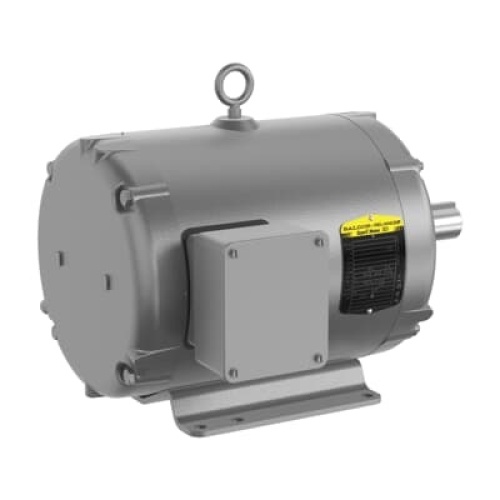

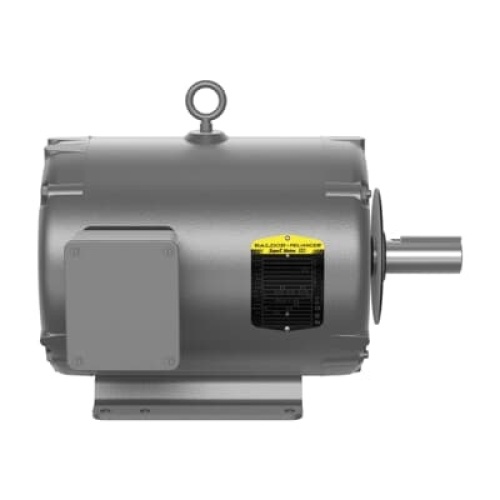

Baldor ECTM3615T-57 - TEAO, 3 Phase, 5 HP , 50 Hz
Normally In Stock
Baldor ECTM3615T- 57 - Totally Enclosed Air Over - Weather Proof Motor - 1500 RPM - 415 Volt - 7.4 Amp - 5 HP - Steel - 213TZ Frame - Class F Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$2753.63
Sale Price
$2294.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor ECTM3615T-57 - Introducing Baldor motors, a leading name in industrial electric motors and power transmission products. With a rich legacy of excellence and reliability, Baldor offers a wide range of high-quality motors designed to meet diverse industrial needs. From energy-efficient solutions to durable construction, Baldor motors are trusted for their performance and longevity in various applications, including manufacturing, HVAC, pumps, fans, compressors, and more. With customizable options and compliance with industry regulations, Baldor motors ensure efficient and reliable operation, making them the preferred choice for businesses seeking top-notch solutions for their remote supply needs.
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
5 HP
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Voltage
230 Volt
Motor Amperage (Full Load)
7.4 Amp
Motor Voltage
380 Volt
Motor Voltage
415 Volt
Motor RPM's
1500 RPM
Motor Frequency
50 Hz
Motor Enclosure Type
Totally Enclosed Air Over
Motor Frame Model
213TZ
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Motor Type
Weather Proof
Features
Severe-duty construction with a rugged cast iron frame and corrosion-resistant hardware and coatings, built to withstand the toughest environments.
Four-barrier shaft sealing (lip contact seal, V-ring slinger, dome slinger, double-sealed bearings) on the drive end combined with a lipped conduit lid and lead separator gasket delivers enhanced protection with an IP55 rating.
Suitable for Inverter Duty per NEMA MG1 Part 31.4.4.2
*Internally mounted shaft grounding ring installed on all -G suffix
Heating strips warm the motor windings to prevent moisture buildup and condensation, protecting against corrosion and performance loss.
Equipped with a tapped drive end shaft and endplate for secure vertical lifting, plus an easily installed eyebolt for versatile lifting options.
