Code: 313965

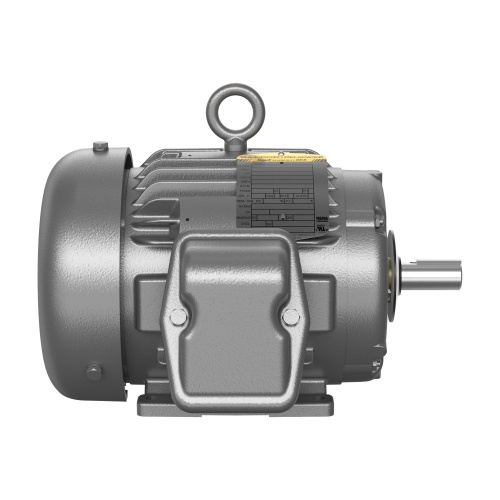

Baldor ECTM3584T-G - TEFC, 3 Phase, 1.5 HP , 60 Hz
Normally In Stock
Baldor ECTM3584T- G - Totally Enclosed Fan Cooled - Chemical Processing Motor - 1800 RPM - 460 Volt - 2.2 Amp - 1.5 HP - Iron - 145T Frame - Class F Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$2396.81
Sale Price
$1997.34
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor ECTM3584T-G - Baldor-Reliance® severe duty motors are specifically engineered to withstand harsh conditions, safeguarding against contamination, moisture, vibration, and corrosion. These motors are equipped with Super-E® premium efficient electrical designs, ensuring they can handle demanding duty cycles while delivering high starting and peak torques across wide speed ranges. With heavy-duty cast iron construction and enhanced ingress protection, these motors provide a safe, reliable, and long operating life, effectively reducing energy consumption even in the most challenging applications. Additionally, their corrosion-resistant epoxy finish adds further durability to the motors, making them an ideal choice for tough environments.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
1.5 HP
Motor Frame Model
145T
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Amperage (Full Load)
2.2 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Motor Type
Chemical Processing
Features
Severe-duty construction with a rugged cast iron frame and corrosion-resistant hardware and coatings, built to withstand the toughest environments.
Four-barrier shaft sealing (lip contact seal, V-ring slinger, dome slinger, double-sealed bearings) on the drive end combined with a lipped conduit lid and lead separator gasket delivers enhanced protection with an IP55 rating.
Suitable for Inverter Duty per NEMA MG1 Part 31.4.4.2
*Internally mounted shaft grounding ring installed on all -G suffix
Heating strips warm the motor windings to prevent moisture buildup and condensation, protecting against corrosion and performance loss.
Equipped with a tapped drive end shaft and endplate for secure vertical lifting, plus an easily installed eyebolt for versatile lifting options.
