Code: 313948

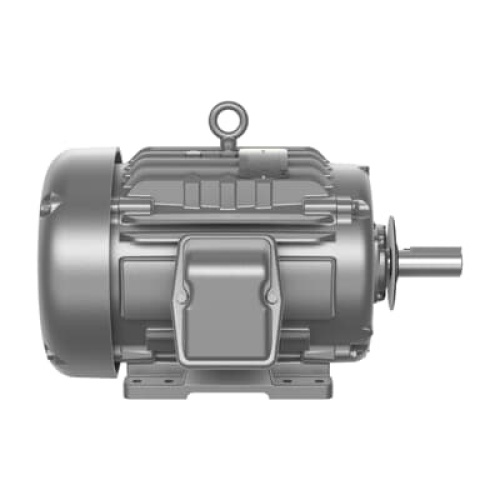

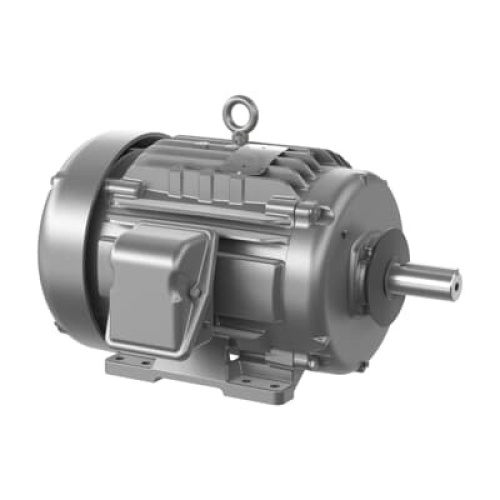

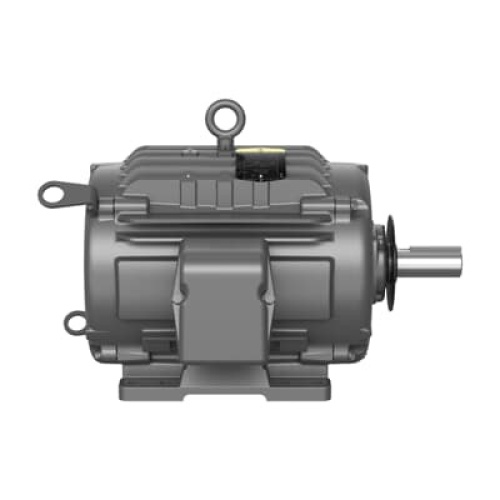

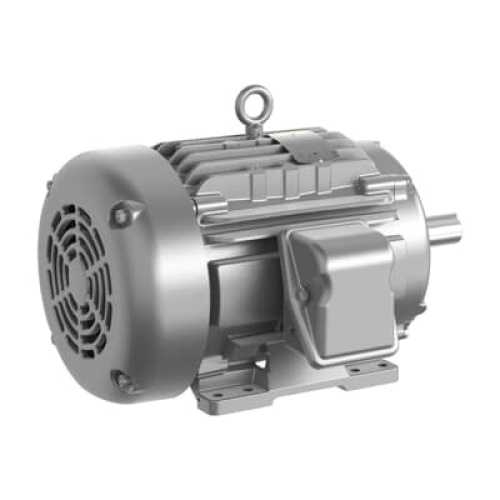

Baldor ECTM2276T-5G - TEFC, 3 Phase, 7.5 HP , 60 Hz
Normally In Stock
Baldor ECTM2276T- 5G - Totally Enclosed Fan Cooled - Chemical Processing Motor - 1200 RPM - 575 Volt - 8.7 Amp - 7.5 HP - Iron - 254T Frame - Class F Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME$6443.38
Sale Price
$5369.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor ECTM2276T-5G - Baldor-Reliance® severe duty motors are specifically engineered to withstand harsh conditions, safeguarding against contamination, moisture, vibration, and corrosion. These motors are equipped with Super-E® premium efficient electrical designs, ensuring they can handle demanding duty cycles while delivering high starting and peak torques across wide speed ranges. With heavy-duty cast iron construction and enhanced ingress protection, these motors provide a safe, reliable, and long operating life, effectively reducing energy consumption even in the most challenging applications. Additionally, their corrosion-resistant epoxy finish adds further durability to the motors, making them an ideal choice for tough environments.
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
7.5 HP
Motor Frame Model
254T
Motor Voltage
575 Volt
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design A
Motor Amperage (Full Load)
8.7 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Motor Type
Chemical Processing
Features
Severe-duty construction with a rugged cast iron frame and corrosion-resistant hardware and coatings, built to withstand the toughest environments.
Four-barrier shaft sealing (lip contact seal, V-ring slinger, dome slinger, double-sealed bearings) on the drive end combined with a lipped conduit lid and lead separator gasket delivers enhanced protection with an IP55 rating.
Suitable for Inverter Duty per NEMA MG1 Part 31.4.4.2
*Internally mounted shaft grounding ring installed on all -G suffix
Heating strips warm the motor windings to prevent moisture buildup and condensation, protecting against corrosion and performance loss.
Equipped with a tapped drive end shaft and endplate for secure vertical lifting, plus an easily installed eyebolt for versatile lifting options.
