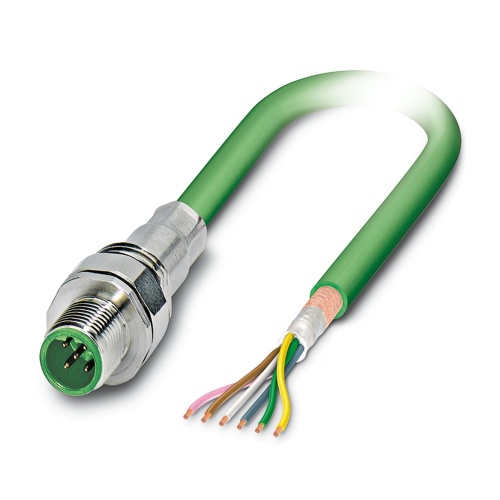

Phoenix Contact 1239915 Device connector front mounting SACCEC-M12MSB-5CON-M16/2,0-900X
Normally In Stock
Code: 307475
Phoenix Contact 1239915 - 6 Positions - CuZn - IP67 - M12
Condition: New
Usually ships Same Day or Next Day$46.66
Sale Price
$38.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1239915 The device connector features a front mounting design and is compatible with the INTERBUS standard at a speed of 16 Mbps. It has five positions, is made from PUR material that meets halogen-free standards, and is colored green to meet RAL 6017 specifications. The connector has a shielded design and a straight pin configuration with an M12 size, where coding indicates it's on the free end of the cable. For attachment, an M16 x 1.5 mounting system is used, allowing for a 2m long INTERBUS cable connection. Additionally, the item complies with RoHS II regulations regarding lead-free materials, specifically meeting the <0.1% Pb threshold without exception.
Specifications
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
6
Sub Component
Device Connector-Front Mounting
Features
Preassembled with cables in various standard lengths for immediate use
Customer-specific assemblies and cable lengths can be supplied
Sealed on the cable side for optimum tightness of seal
Cable designs for all common networks and fieldbuses
For high transmission safety: shield connection to the housing with optional EMC nut
