Code: 306654

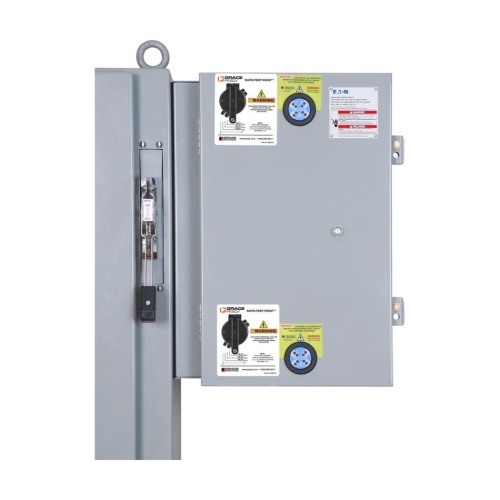

Eaton OLI362FDJC-0000 Fusible Disconnect Switch - 60 Amp
Normally In Stock
Eaton OLI362FDJC - 0000 - 60 A - NEMA 12/3R - Galvanized steel - Class J - Fusible without neutral - 3-pole - 3-wire - 600 V - #14 - #2 Cu/Al
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$5084.47
Sale Price
$4237.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton OLI362FDJC-0000 - The OEM Line Isolation (OLI) switch by Eaton is designed to enhance safety and reduce arc flash hazards in industrial control panels. It provides an external disconnecting means, allowing operators to access the control panel without exposure to line side voltage. This improves worker safety, reduces the need for personal protective equipment (PPE), and enhances worker dexterity and mobility. The OLI switch integrates with major manufacturers' "disconnect enclosures" and works with the Eaton C371-style handle and operating mechanism. The switch is available in a range of ratings from 30-600 A and comes with NEMA 12/3R and NEMA 4X 304 stainless steel enclosures. Features include an oversized line shield, optional voltage portals and testers, gasketed side wall mounts, voltage indicators, mechanical interlock, flange handle for mounting, and a custom Flex Shaft operator modified for safety switch compatibility. The OLI switch is a complete package, including the enclosure, disconnect, handle, flex-cable operator, and other necessary components
Specifications
Enclosure Composition
304 Stainless Steel
Enclosure NEMA Rating
NEMA 4X
Component
Fusible Disconnect Switch
Manufacturer
Eaton
Disconnect Enclosure Width
16.08 In
Disconnect Enclosure Depth
21.49 In
Disconnect Enclosure Height
9.24 In
Voltage
600 VDC
Current
200 Amp
Features
Includes a mechanical interlock that prevents the switch and OEM cabinet from opening when the handle is in the ON position
Includes gasketed side wall mounts to OEM cabinet, and oversized line shield (internal to switch), flange handle, and an optional voltage portal(s)
Provides a custom flex shaft operator modified to work with safety switch
Offers a modified heavy-duty safety switch with NEMA¬ Type 12/3 and 4/4X enclosure options
Shows voltage indicators for line, load, or line and load side of switch (optional)
