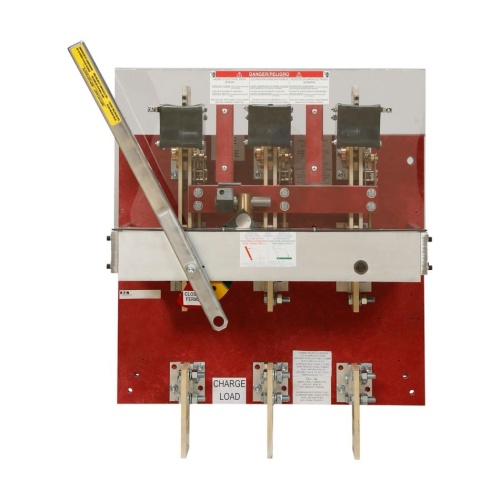

Eaton QA2033T480K5 Fusible Disconnect Switch - 2000 Amp
Normally In Stock
Code: 306308
Eaton QA2033T480K5 - Interlock - Manual bolted pressure contact switch - 2000A - 1NO - 1NC - Top - Fusible - 480V - NEMA 1/3R/4/12 - 3-pole - 3-wire
Condition: New
Usually ships Same Day or Next Day$12818.87
Sale Price
$10682.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton QA2033T480K5 - The Pringle Bolted Pressure Switches by Eaton are highly regarded in the electrical industry for their exceptional quality and long-standing presence since 1891. These custom-built switches are widely used for heavy-duty applications and are a standard choice for high-current switching worldwide, including UL 891 switchboards. With bolted pressure contacts and a unique spring mechanism using concave-convex washers, these switches ensure secure and efficient current conduction, offering reliability and ease of operation. They are available in various configurations, amperage ratings, and optional features, making them versatile and suitable for diverse industrial and commercial applications.
Specifications
Enclosure NEMA Rating
NEMA 3R
Enclosure NEMA Rating
NEMA 1
Enclosure NEMA Rating
NEMA 12
Enclosure NEMA Rating
NEMA 4
Component
Fusible Disconnect Switch
Disconnect Enclosure Height
28 In
Disconnect Enclosure Width
24 In
Manufacturer
Eaton
Disconnect Enclosure Depth
13.5 In
Features
Provides current conducting efficiency equivalent to that of a bolted bus bar
Ensures long-term switch reliability with its non-magnetic switch bolting mechanism
Includes a higher force and distance ratio with its paired washer spring design, which makes it easier to operate the mechanism
Switches have a short circuit rating of 200kAIC when protected by Class L fuses
Suitable for use in UL 891 switchboards
