Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 300112

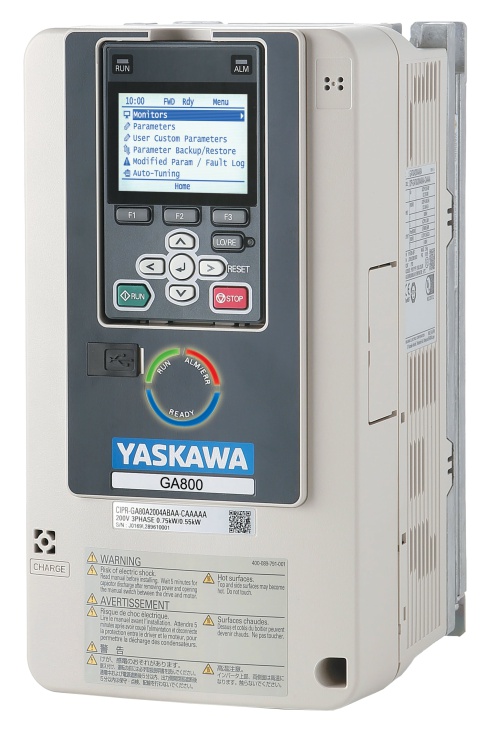

Yaskawa GA80UT414AAM - GA800 Drive - 480 Volt, 300/350 HP
Normally In Stock
Yaskawa GA80UT414AAM - 12-Pulse - 480 Volt - 371/414 Amp - 300/350 HP - IP00, Protected Chassis - 31.5" x 17.96" x 18.58" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$38374.75
Sale Price
$31978.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Yaskawa GA80UT414AAM - Experience the ultimate combination of power, flexibility, and performance with the Yaskawa GA800 drive. Its high-resolution display and mobile device connectivity make setup effortless. Enjoy precise control, outstanding torque production, and versatile features like embedded function blocks and popular network connections. The drive's Embedded Safe Torque Off and Integrated DC Reactor ensure safety and power quality. With its compact design, RoHS compliance, and optional flange version, the GA800 is the ideal solution for variable speed applications.
Specifications
VFD Control Panel
LCD With Keypad
VFD Horsepower Output
300 HP
VFD Horsepower Output
350 HP
VFD Amperage Output
414 Amp
VFD Frame Type
GA800
Manufacturer
Yaskawa
VFD Amperage Output
371 Amp
VFD Line
GA80
VFD Input Voltage
480 Volt 12-Pulse
VFD Output Voltage
480 Volt 12-Pulse
VFD NEMA-IP Rating
IP00 Protected Chassis
Features
High resolution multi-language display with Setup Wizards and Data-Logging.
Bluetooth and DriveWizardMobile for convenient and easy interaction.
Programming without main power through embedded USB port.
DriveWizard Desktop for comprehensive configuration and monitoring.
DriveWorks EZ (embedded function blocks) provides extra flexibility, otherwise accomplished in a separate controller.
Closed or open loop vector control for outstanding regulation and torque production.
Fast acting motor control functions provide near tripless operation.
Popular network connections provide robust control and monitoring with system controllers.
Embedded Auxiliary Control Power Input (24V) maximizes production time and efficiency by maintaining network communication while main power is removed.
Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL3, PLe, Category 3).
Integrated DC Reactor (40HP and larger) improves power quality and compatibility.
Integrated 12 Pulse version provides a cost effective solution for low harmonics.
Integrated Brake Transistor (up to 125HP ND) for cost effective heavy braking.
Standard conformal coating helps resist contamination.
Made with RoHS compliant materials for environmental compliance.
Flange version provides IP55/UL Type12 backside integrity when mounting with heatsink external.
