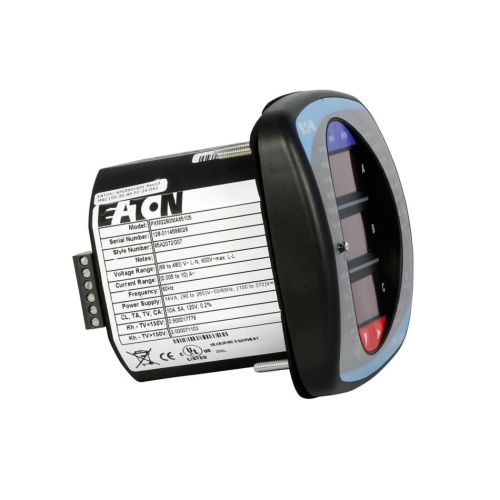

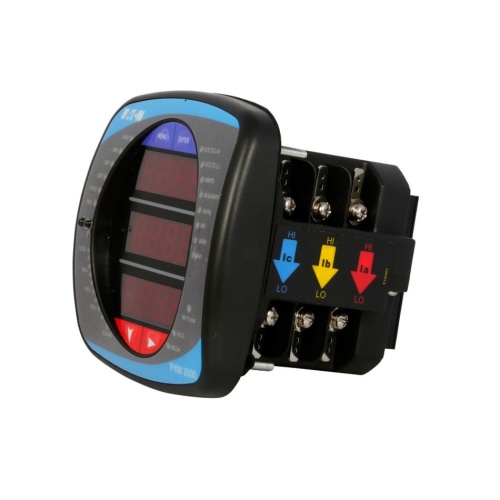

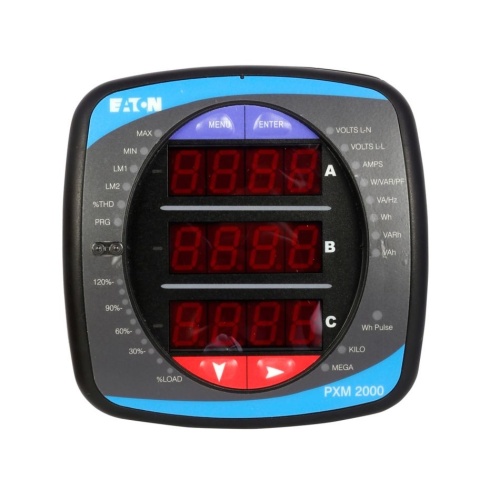

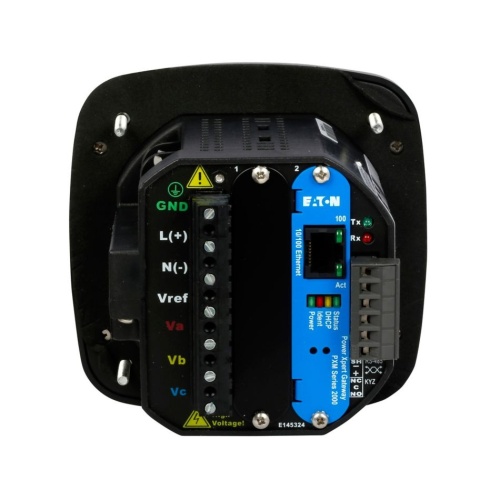

Eaton PXM2290MA65145 Power Meter
Normally In Stock
Code: 296117
Eaton PXM2290MA65145 - 5 Amp - 24-60 VDC - 60 Hz - 4.85" x 3.96" x 4.85" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$14390.88
Sale Price
$11992.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton PXM2290MA65145 Power quality plus with up to 512 samples/cycle recording meter, 768 MB, Transducer only (no display), 60 Hz, 5A secondary, 24-60 Vdc, 4 analog outputs: 0-1 mA, Gateway card
Specifications
Monitoring Approval
ANSI C12.20
Monitoring Primary Rated Current
5 Amp
Monitoring Connection Method
RJ45 Ethernet
Monitoring Connection Method
Modbus RTU
Monitoring Connection Method
Bacnet
Component
Power Meter
Manufacturer
Eaton
Monitoring Accuracy Class
Class 0.2
Monitoring Interface
Graphic Display (Local - Remote)
Monitoring Measuring Range
400 Samples/Cycle
Monitoring Connection Method
Modbus TCP
Monitoring Input Signal
0 Ma -1 Ma
Monitoring Supply Voltage
24-60 VDC
