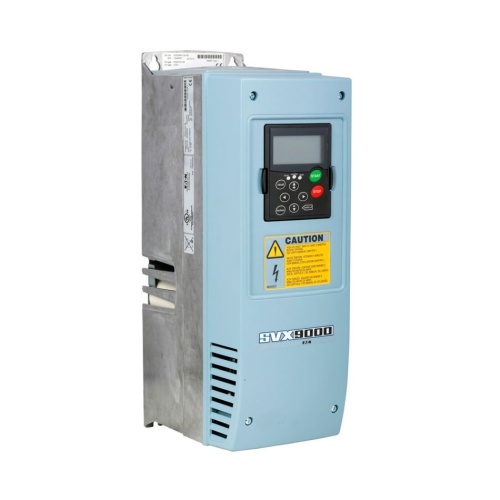

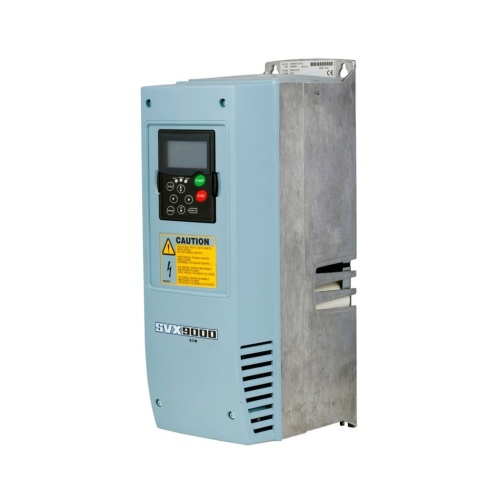

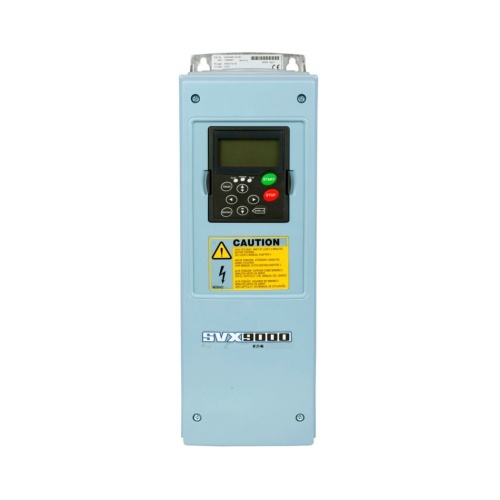

Eaton SVX015A1-4A1B1B8C3 SVX Drive 15 HP 480 Volt Three Phase
Normally In Stock
Code: 277408
Eaton SVX015A1-4A1B1B8C3 - 480 Volt Three Phase - 15 HP - NEMA 1, IP21 - FS5 Frame - 16.5" x 5.6" x 8.4" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$7362.22
Sale Price
$6135.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton SVX015A1-4A1B1B8C3 - 15HP - NEMA Type 1/IP21 - 480V - FR5 - 3-phase - EMC H - Alphanumeric keypad - Internal brake chopper - Standard boards - Extended I/O Card Options 1 ext +24 Vdc/EXT +24 Vdc 3 Pt100 - Communication Options Profibus DP
Specifications
VFD Horsepower Output
15 HP
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
VFD NEMA-IP Rating
NEMA 1
VFD NEMA-IP Rating
IP21
Manufacturer
Eaton
VFD Frame Type
FS5
VFD Line
SVX
VFD Brake
With Brake Chopper
Communication
Profibus DP
Features
Ease of use: Startup Wizard, seven built-in applications, local/remote button, modular design, text display
Space-saving design: Compact design, open NEMA12 option, onboard I/O expansion provisions
Efficiency: Built-in 3% line reactor, EMI/RFI filter standard
Rugged and reliable: High overload (CT) and low overload (VT) rated, robust time-proven design, durable metal power section, brake chopper circuit
