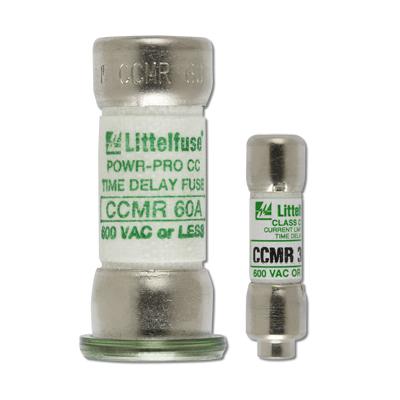

Littelfuse CCMR01.5 Fuse Class CC 1.5 Amps
Normally In Stock
Code: 27496
Littelfuse Fuse CCMR01.5, 1 1/2 Amps
, 600 Volts, Class CC
Condition: New
Usually ships same day or next day$36.43
Sale Price
$30.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse Fuse CCMR01.5, 1 1/2 Amps
, 600 Volts, UL Class CC, Time Delay, Extremely Current Limiting, Physical Size: 0.41" x 1 1/2", Dual Element, Motor and Motor Branch Circuit Protection, 600 Volts, 250 Volts, Interrupting Rating: 200,000 AIC @ 600VAC, DC Interrupting Rating: 20,000 AIC, UL Listed, CSA Certified, RoHS Compliant
Specifications
Fuse Voltage Rating
600 Volts
Fuse Type (UL)
Class CC
Fuse Response Time
Time Delayed
Fuse Protection Type
Motor Protection
Fuse Protection Type
Motor Branch Circuit Protection
Manufacturer
Littelfuse
Fuse Size
0.41" X 1.5"
Fuse Amperage Rating
1.5 Amp
Component
Fuse
Features
POWR-PRO® Performance
Dual-element, time-delay protection
Extremely current-limiting
Extremely current-limiting
Type 2 “No Damage” protection
