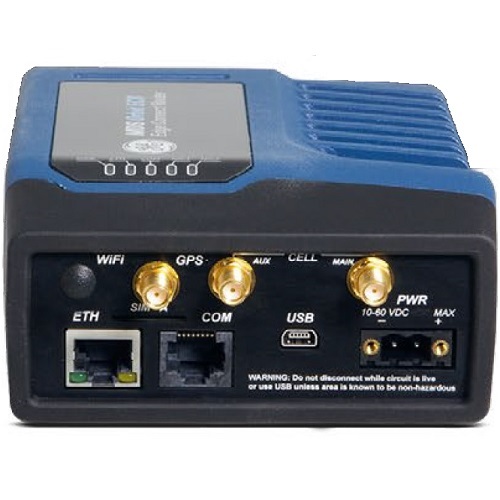

MDS Orbit ECR Cellular 3G GSM World Dual SIM-No Second Media 1 Ethernet 1 Serial 1 USB (Din Rail Mount)

MDS Orbit ECR Cellular 3G GSM World Dual SIM with standarad mount and No Second Media. ECR3G12NNNNS1D3USUNNN Managed Connected Router MCR Series. Includes 2 Ethernet and 1 Serial port. Operating power of 10-60 VDC up to 1 watt. USB for configuration, status monitoring, local and secure single point connection. Range of up to 30 miles line of site. Low latency and scalable data throughput rates of 125 Kbps, 250 Kbps, 500 Kbps, 1 Mbps, and 1.25 Mbps. Access Point, remote, store and forward, point to multipoint and point to point. Works as Serial Terminal Server with protocols including Modbus and DNPv3 supported and serial traffic from SCADA and telemetry data encapsulated in TCP and UDP to transport across MDS Orbit wireless or wired networks. The MDS Orbit devices are capable of routing across any of its network interfaces including the local Ethernet ports, WiFi, WiMAX, cellular, and 900MHz ISM. Operating temperature of -40F-158F. (2.1"H x 4.3"W x 4.6"D) Antenna ports for 900 MHz: TNC, WiFi: RP-SMA, Cellular SMA. Ethernet ports: RJ-45, Serial ports: RS-232/RS-485 and RJ45.

Specifications
Radio Type	Cellular
Radio 2 Type	None
Radio Capability	Point to Multipoint
Radio Voltage	12 VDC
Radio Voltage	24 VDC
Radio Carrier Power	1 watt
Radio Data Protocol	Serial
Radio Temperature Range Low	-40f
Radio Temperature Range High	158f
Radio Encryption	AES-128
Radio Housing	Enclosed
Radio UL Approval	UL Approved
Radio Data Protocol	Ethernet
Radio Range	Unlimited
Radio Voltage	48 VDC
Radio Serial Ports	1 Serial Port
Radio RF Connector	TNC Female
Radio Ethernet Ports	1 Ethernet Port
Radio Data Interface	RJ45
Radio Mounting	Din Rail Mount
Radio Data Rate	1.25 Mbps
Radio Frequency Range	Cellular
Radio Antenna Ports	1 Antenna Port
Manufacturer	MDS
Line	Orbit ECR
Component	Radio
