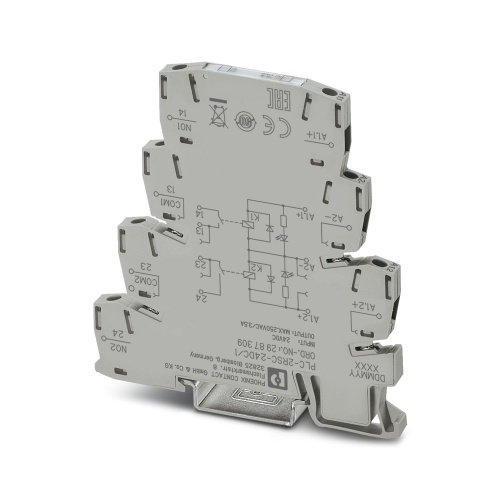

Phoenix Contact 2987309 Relay module PLC-2RSC-24DC/ 1
Normally In Stock
Code: 24425
Phoenix Contact 2987309 Electromagnetic Relay 24 VDC Coil 1 Pole Single Throw
Condition: New
Usually ships within 7-14 days. Call for ship time.$56.68
Sale Price
$47.23
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2987309 A PLC-Interface with two independent relays is comprised of a PLC-BSC module and the basic terminal block with screw connection type 21. This configuration features integrated relays with power contacts that can be mounted on DIN rail NS 35/7.5 for a secure and space-efficient installation, utilizing 2 x 1 N/O contacts to facilitate signal transmission, and operates within an input voltage range of 24 V DC.
Specifications
Relay Mounting
Din Rail
Relay Indication
LED Indicator
Relay Contact Material
Silver Nickel Contacts
Relay Connection Type
Screw Connection
Relay Poles
Single Pole
Component
Relay Module-Electromagnetic
Manufacturer
Phoenix Contact
Relay Throws
Single Throw Normally Open
Relay Input Amperage
7 Mamp
Coil Voltage Rating
12-24 Volt
Relay Load Voltage AC Rating
250 Volt
Features
Two switching channels in one 6.2 mm housing
100% higher channel density than conventional 6.2 mm relays
Integrated input circuit/protective circuit
Safe isolation according to DIN EN 50178 between coil and contacts and between contacts
Screw- and Push-in connection
Downloads
Phoenix 2987309 Application Note English.pdfPhoenix 2987309 CAD data International.dxfPhoenix 2987309 CAD data International.pdfPhoenix 2987309 CAD data International.stpPhoenix 2987309 CAD Drawing.zipPhoenix 2987309 Circuit Diagram.jpgPhoenix 2987309 Manufacturers declaration English.pdfPhoenix 2987309 Manufacturers declaration International.pdfPhoenix 2987309 Package Slip International.pdfPhoenix 2987309 Package Slip.pdfPhoenix 2987309 Product Information English.pdfPhoenix 2987309 Spec Sheet.pdfPhoenix 2987309 Tender Text English.zipPhoenix 2987309 Various International.pdf
