Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

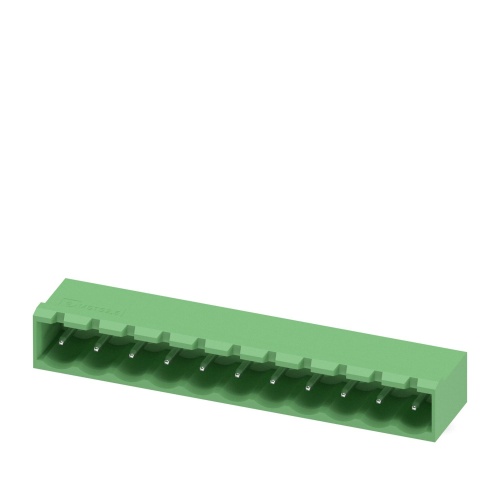

Phoenix Contact 1757336 PCB header MSTBA 2,5/11-G-5,08
Normally In Stock
Code: 240153
Phoenix Contact 1757336 PCB Header, Green, rated voltage: 320 V, nom. current: 12 Amp,Number of positions: 11,Number of connections: 11 (MUST SELL IN PACKS OF 50)
Condition: New
Usually ships Same Day or Next Day $4.18
Sale Price
$3.48
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1757336 The PCB header is a component featuring 11 pin connections with a nominal cross-sectional area of 2.5 mm² and a green color. It has a rated voltage of 320V and can handle a maximum current of 12A. The headers are designed for wave soldering mounting, have a linear pinning layout, and feature 11 solder pins per potential, each measuring 3.23mm in length.
Specifications
Connector Amperage
12 Amp
Connector Color
Green
Manufacturer
Phoenix Contact
Number of Connections
11
Number of Positions
11
Component
PCB
Sub Component
PCB Header
Connector Voltage
320 Volt
Features
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Well-known mounting principle allows worldwide use
Plug-in direction parallel to the PCB
Closed contour for optimum stability of the plug-in connection
Easy PCB replacement thanks to plug-in modules
