Phoenix Contact 1642153 Conductor connector Q 1,5/4IDC/24-24KU-KU BK
Normally In Stock
Code: 239130
Phoenix Contact 1642153 , nom. current: 15 Amp,Number of positions: 4,
Condition: New
Usually ships within 7-14 days. Call for ship time$22.34
Sale Price
$18.62
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

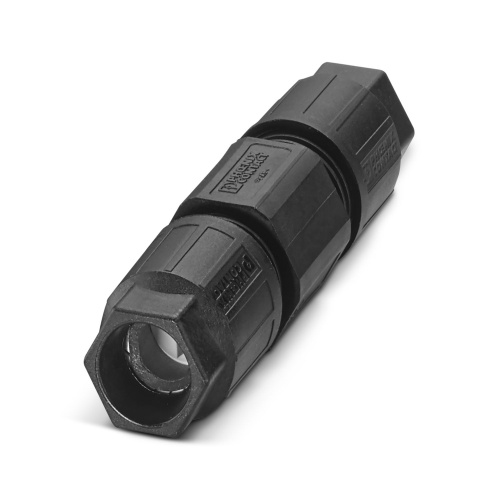

Phoenix Contact 1642153 The QUICKON cable connector is available in a black, 4-position configuration with a copper-based conductor that has an outer diameter between 6-12mm and an insulation thickness between 0.75-1.5mm2, suitable for applications up to 500 volts and 15 amps.
Specifications
Connector Amperage
15 Amp
Manufacturer
Phoenix Contact
Number of Positions
4
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP65/IP67 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Easy and safe - with the cable connector, you can repair or extend cables quickly, in combination with the connector as well as the coupling connection
