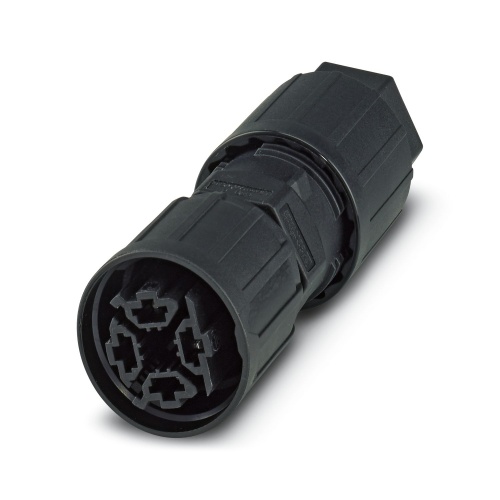

Phoenix Contact 1424042 Connector QPD P3PE2,5 9-14 BK BK
Normally In Stock
Code: 238151
Phoenix Contact 1424042 - Connector - 4 Positions - Cu - 16 AWG - 20 Amp - 690 V - IP66 - Screw Locking
Condition: New
Usually ships Same Day or Next Day$15.05
Sale Price
$12.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1424042 The connector product family is QPD and it uses an IDC connection method that can accommodate up to three positions of patch panel equipment (PE), offering varying cable sizes from 1mm2 to 2.5mm2. The power specifications are 690V and 20A, with a rating of PA, and the physical characteristics include a black color and a QUICKON nut. The external cable diameter ranges from 9mm to 14mm.
Specifications
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Installation Connector
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Easy maintenance – the connectors enable fast device replacement and preassembled cables simplify startup
