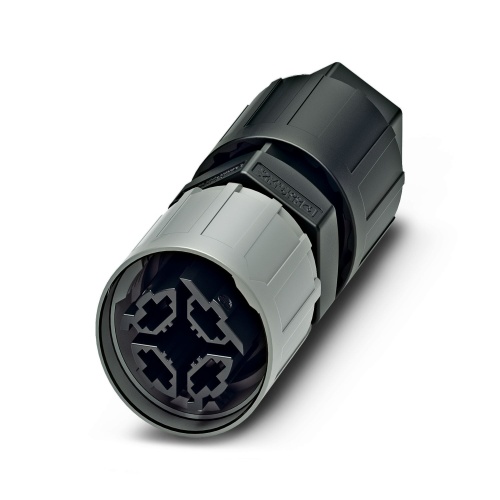

Phoenix Contact 1423988 Connector QPD P3PE2,5 9-14 BK
Normally In Stock
Code: 238131
Phoenix Contact 1423988 - Connector - 4 Positions - Cu - 16 AWG - 20 Amp - 690 V - IP66 - Screw Locking
Condition: New
Usually ships Same Day or Next Day$14.32
Sale Price
$11.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1423988 A product family of connectors known as QPD features an IDC connection method with multiple positions accommodating sizes ranging from 1 mm2 to 2.5 mm2, operating at 690 V and a maximum current rating of 20 A, characterized by its black coloration and inclusion of a QUICKON nut, while the external cable diameter falls within 9 mm to 14 mm in diameter.
Specifications
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Installation Connector
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Easy maintenance – the connectors enable fast device replacement and preassembled cables simplify startup
