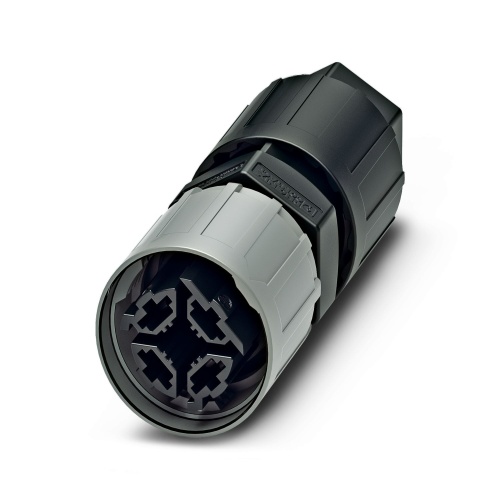

Phoenix Contact 1423987 Connector QPD P3PE2,5 6-10 BK
Normally In Stock
Code: 238130
Phoenix Contact 1423987 - Connector - 4 Positions - Cu - 16 AWG - 20 Amp - 690 V - IP66 - Screw Locking
Condition: New
Usually ships Same Day or Next Day$15.05
Sale Price
$12.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1423987 The QPD connector product family features IDC connections available in various configurations, including 3+PE (pins and eyes) and wires of 1-2.5mm2 cross-sectional area, rated for up to 20A current at a maximum voltage of 690V. The connectors are constructed from PA material and have a black finish with a QUICKON nut for secure connections. They come in standard cable diameters ranging from 6mm to 10mm, accommodating external cabling needs.
Specifications
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Installation Connector
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Easy maintenance – the connectors enable fast device replacement and preassembled cables simplify startup
