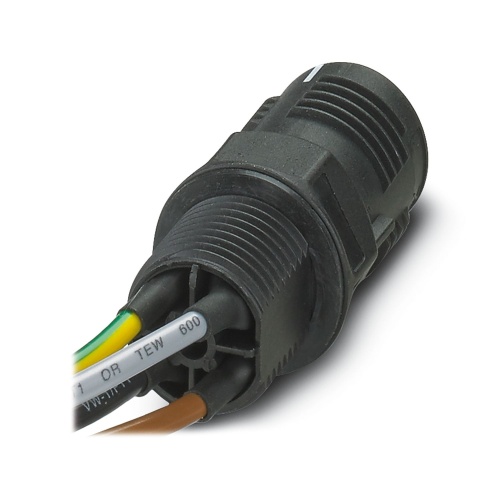

Phoenix Contact 1423983 Panel feed-through QPD W3PE2,5 M25 0,5 BK
Normally In Stock
Code: 238129
Phoenix Contact 1423983 - Panel feed-through - 4 Positions - Cu - 16 AWG - 20 Amp - 690 V - IP66 - IDC Connection - Screw Locking
Condition: New
Usually ships Same Day or Next Day$20.60
Sale Price
$17.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1423983 The panel feed-through product features a QPD family with single wire connections welded on, accommodating up to three plus PE positions, M25 pin sizes, and available in two current ratings of 1mm² and 2.5mm², with a maximum voltage of 690V and an ampere rating of 20A, designated as PA. The unit is black in color, lacking a QUICKON nut, has coded wire ends, and comes cut flat at the end with a specified cable length of 0.5 meters.
Specifications
Component
Panel
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Panel Feed-Through
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
