Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

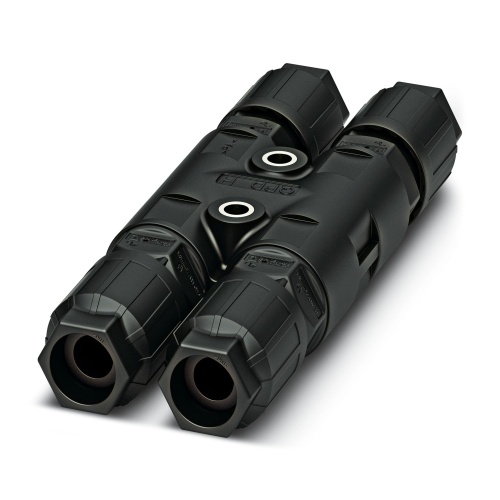

Phoenix Contact 1423971 H distributor QPD H3PE2,5 4X6-10 BK
Normally In Stock
Code: 238126
Phoenix Contact 1423971 Power Distributor, Black, rated voltage: 690 V, nom. current: 20 Amp,Number of positions: 3+P,
Condition: New
Usually ships Same Day or Next Day$60.31
Sale Price
$50.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1423971 The distributor is part of a product family called QPD and features an IDC connection for attachment, accommodating up to 3+ positions with varying wire sizes (1mm2 to 2.5mm2). It operates at 690V and can handle a maximum current of 20A, while also having a protective aspect (PA) and is colored black. The product includes four QUICKON nuts for secure fastening and has an external cable diameter range of 6mm to 10mm with a distinct coding profile.
Specifications
Connector Color
Black
Connector Amperage
20 Amp
Manufacturer
Phoenix Contact
Component
Power Distributor
Number of Positions
3+P
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Flexible and compact - by connecting connections internally, H and T-distributors can be used to branch master cables or they can be used as star distributors

Code: 238126
Phoenix Contact 1423971 H distributor QPD H3PE2,5 4X6-10 BK
$60.31
Sale Price
$50.26
