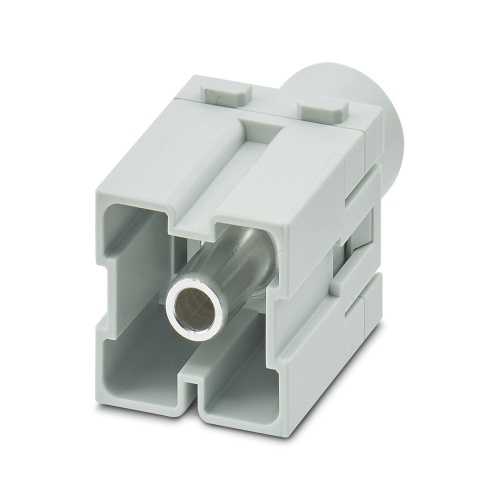

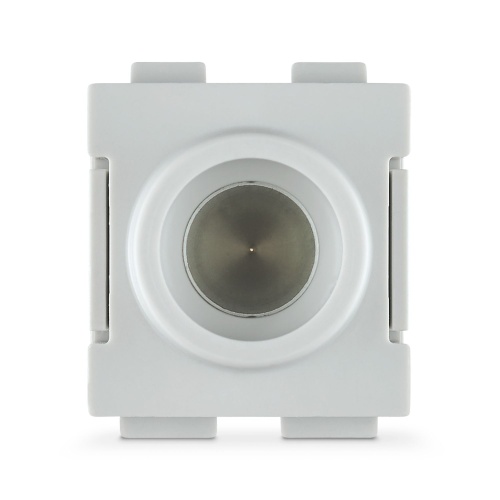

Phoenix Contact 1417381 Contact insert module HC-M-01-AT-M-40
Normally In Stock
Code: 237866
Phoenix Contact 1417381 - Contact insert module - 1 Position - Copper Alloy - 10 AWG - Light gray - 200 Amp - 1000 V
Condition: New
Usually ships Same Day or Next Day $36.10
Sale Price
$30.08
MUST BUY IN PACKS OF 2
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

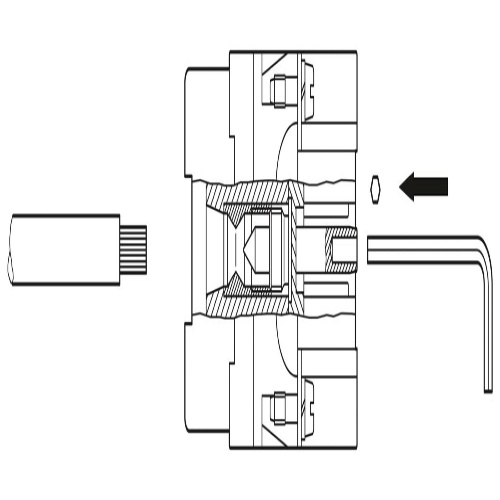

Phoenix Contact 1417381 The contact insert module features one power contact, zero control contacts, and a single pin with an axial screw connection. It is rated for high current applications, supporting up to 200A at 1000V with a cross-sectional area of either 6mm2 or 70mm2, indicating its suitability for powering devices in various settings.
Specifications
Connector Color
Light Gray
Connector Amperage
200 Amp
Connector Material
PC
Connector Material
Copper Alloy
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
1
Sub Component
Contact Insert Module
Connector Voltage
1000 Volt
Features
The right connection for your requirements every time with three different series
Compatible connection: housings and contact inserts are mounting and plug-in compatible with solutions from well-known manufacturers
Flexible combination: variable connection technologies for contact inserts and terminal adapters
Customized, compact interface: combine modular contact inserts for signals, data, power, and pneumatics in one connector
Protection against electromagnetic interference: metal housings are EMC-ready due to their conductive surfaces and seals
