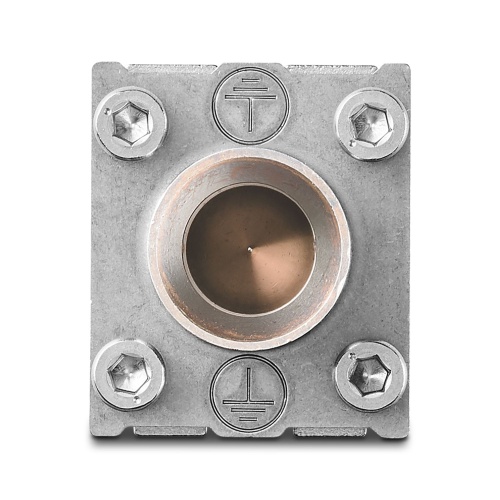

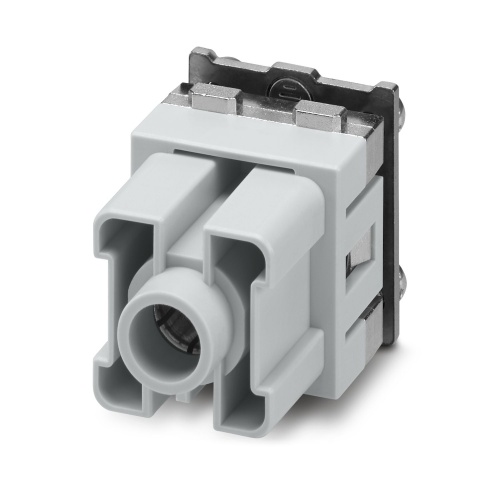

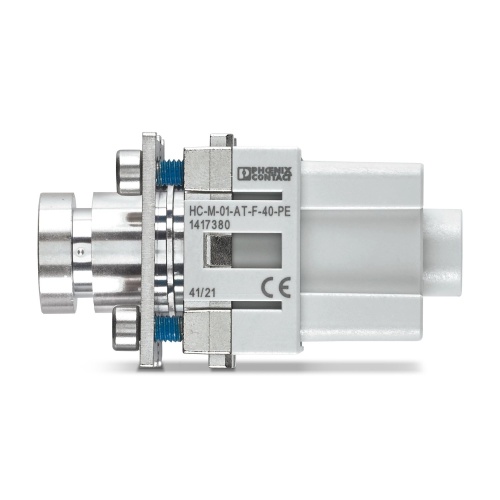

Phoenix Contact 1417380 Contact insert module HC-M-01-AT-F-40-PE
Normally In Stock
Code: 237865
Phoenix Contact 1417380 - Contact insert module - 1 Position - Copper Alloy - 10 AWG - Light gray
Condition: New
Usually ships Same Day or Next Day $58.20
Sale Price
$48.50
MUST BUY IN PACKS OF 2
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

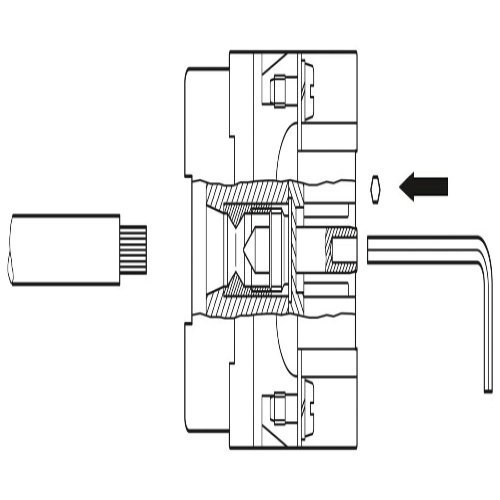

Phoenix Contact 1417380 The insert module features a specific configuration consisting of contact inserts with different specifications: there are two power contacts, no control contacts, and the socket is connected via an axial screw, accommodating copper wires with cross-sectional areas of 25mm² and 70mm², used for a high-voltage transmission system.
Specifications
Connector Color
Light Gray
Connector Material
PC
Connector Material
Copper Alloy
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
1
Sub Component
Contact Insert Module
Features
The right connection for your requirements every time with three different series
Compatible connection: housings and contact inserts are mounting and plug-in compatible with solutions from well-known manufacturers
Flexible combination: variable connection technologies for contact inserts and terminal adapters
Customized, compact interface: combine modular contact inserts for signals, data, power, and pneumatics in one connector
Protection against electromagnetic interference: metal housings are EMC-ready due to their conductive surfaces and seals
