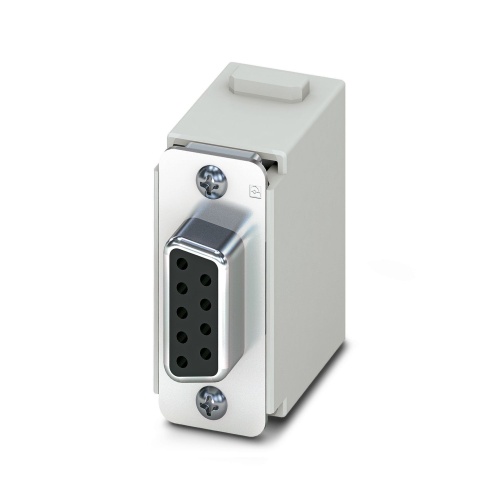

Phoenix Contact 1417308 Contact insert module HC-M-DSUB 09-CT-F
Normally In Stock
Code: 237850
Phoenix Contact 1417308 - D-SUB - 9 Positions - Copper Alloy - 28 AWG - Light gray - 1 Amp - 48 V - Crimp Connection
Condition: New
Usually ships Same Day or Next Day$18.58
Sale Price
$15.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1417308 The contact module has a connector with 9 pins of type D-SUB-9, featuring a socket that can be securely fastened through crimp connection, and is designed to operate at 48 volts and up to 1 ampere with an insulation thickness of either 0.08 or 0.5 mm2, making it suitable for data transmission without the need for additional crimp contacts.
Specifications
Connector Amperage
1 Amp
Connector Color
Light Gray
Connector Material
PC
Connector Material
Copper Alloy
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
9
Sub Component
Contact Insert Module
Connector Voltage
48 Volt
Features
The right connection for your requirements every time with three different series
Compatible connection: housings and contact inserts are mounting and plug-in compatible with solutions from well-known manufacturers
Flexible combination: variable connection technologies for contact inserts and terminal adapters
Customized, compact interface: combine modular contact inserts for signals, data, power, and pneumatics in one connector
Protection against electromagnetic interference: metal housings are EMC-ready due to their conductive surfaces and seals
