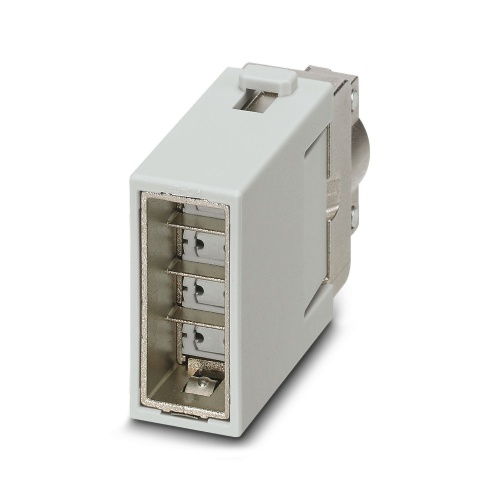

Phoenix Contact 1417302 Contact insert module HC-M-08-GBIT-CT-M
Normally In Stock
Code: 237847
Phoenix Contact 1417302 - 8 Positions - Copper Alloy - 28 AWG - Light gray - 5 Amp - 48 V - Crimp Connection
Condition: New
Usually ships Same Day or Next Day$32.64
Sale Price
$27.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1417302 The contact insert module has a configuration of 8 positions with crimp connections and can operate at 48 V, drawing up to 5 A of current per connection point, with cables having an external diameter ranging from 0.08 mm2 to 0.5 mm2 and a maximum cable diameter of 7 mm, suitable for data transmission applications without the need for crimp contacts.
Specifications
Connector Amperage
5 Amp
Connector Color
Light Gray
Connector Material
PC
Connector Material
Copper Alloy
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
8
Sub Component
Contact Insert Module
Connector Voltage
48 Volt
Features
The right connection for your requirements every time with three different series
Compatible connection: housings and contact inserts are mounting and plug-in compatible with solutions from well-known manufacturers
Flexible combination: variable connection technologies for contact inserts and terminal adapters
Customized, compact interface: combine modular contact inserts for signals, data, power, and pneumatics in one connector
Protection against electromagnetic interference: metal housings are EMC-ready due to their conductive surfaces and seals
