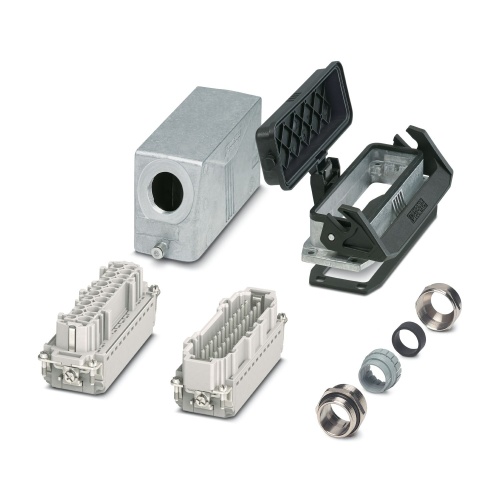

Phoenix Contact 1416358 Connector set HC-STA-B24PT-BWSC-LS-M32-ELCAL
Normally In Stock
Code: 237825
Phoenix Contact 1416358 - Connector set - 24 Positions - Copper Alloy - 26 AWG - 16 Amp - 500 V - IP66 - Push-In Connection - Latch Locking
Condition: New
Usually ships Same Day or Next Day$145.18
Sale Price
$120.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1416358 A connector set consisting of 24 individual connections is available with a push-in connection system, utilizing wires with an American Wire Gauge (AWG) range of 26 to 14.
Specifications
Connector Amperage
16 Amp
Connector Size
B24
Connector Material
Die-Cast Aluminum
Connector Material
Copper Alloy
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
24
Sub Component
Connector Set
Connector Voltage
500 Volt
Features
The right connection for your requirements every time with three different series
Compatible connection: housings and contact inserts are mounting and plug-in compatible with solutions from well-known manufacturers
Flexible combination: variable connection technologies for contact inserts and terminal adapters
Customized, compact interface: combine modular contact inserts for signals, data, power, and pneumatics in one connector
Protection against electromagnetic interference: metal housings are EMC-ready due to their conductive surfaces and seals
