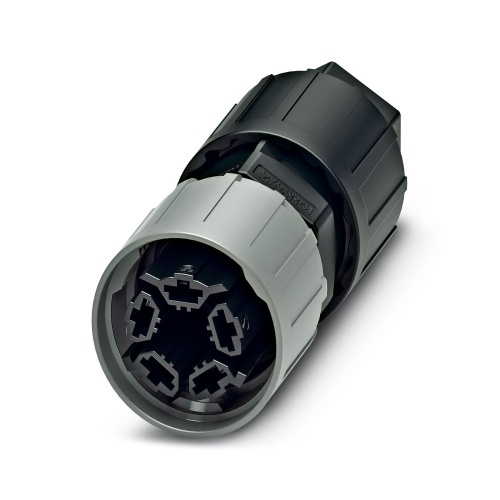

Phoenix Contact 1414749 Connector QPD P 4PE1,5 5-10 BK
Normally In Stock
Code: 237771
Phoenix Contact 1414749 - Connector - 5 Positions - Cu - 20 AWG - 17.5 Amp - 690 V - IP66 - Screw Locking
Condition: New
Usually ships Same Day or Next Day$17.30
Sale Price
$14.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1414749 The connector is part of the QPD product family and features an IDC connection method with a maximum of 4+PE positions that can accommodate copper wires with cross-sectional areas ranging from 0.5 mm² to 1.5 mm², operating at 690 V and 17.5 A. The device has a PA (push-pull) configuration and a black housing with a QUICKON nut for secure connection. It also includes an external cable diameter that can range from 6 mm to 10 mm and is accompanied by a coding profile, allowing for accurate and reliable connections.
Specifications
Connector Amperage
17.5 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Installation Connector
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Easy maintenance – the connectors enable fast device replacement and preassembled cables simplify startup
