Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

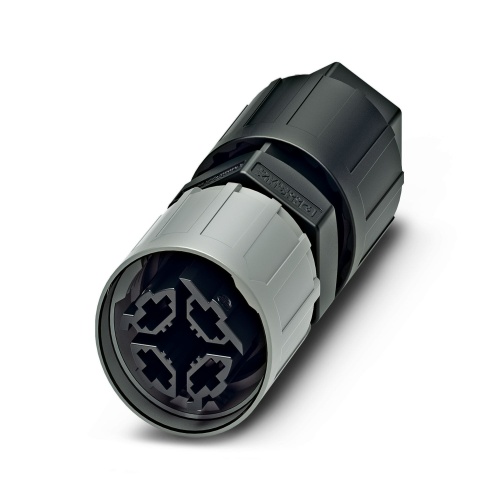

Phoenix Contact 1414706 Connector QPD P 2PE1,5 8-13 BK
Normally In Stock
Code: 237748
Phoenix Contact 1414706 - Connector - 3 Positions - Cu - 20 AWG - 17.5 Amp - 690 V - IP66 - Screw Locking
Condition: New
Usually ships Same Day or Next Day$14.98
Sale Price
$12.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1414706 A connector within the QPD product family features an IDC connection and accommodates up to 0.5 mm2 to 1.5 mm2 of copper wire, operating at 690 V with a current capacity of 17.5 A. The device has a black PA material construction and includes a QUICKON nut for secure attachment, while also featuring a coding profile and external cable diameter ranging from 10 mm to 13 mm.
Specifications
Connector Amperage
17.5 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
3
Sub Component
Installation Connector
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Easy maintenance – the connectors enable fast device replacement and preassembled cables simplify startup
Downloads

Code: 237748
Phoenix Contact 1414706 Connector QPD P 2PE1,5 8-13 BK
$14.98
Sale Price
$12.48
