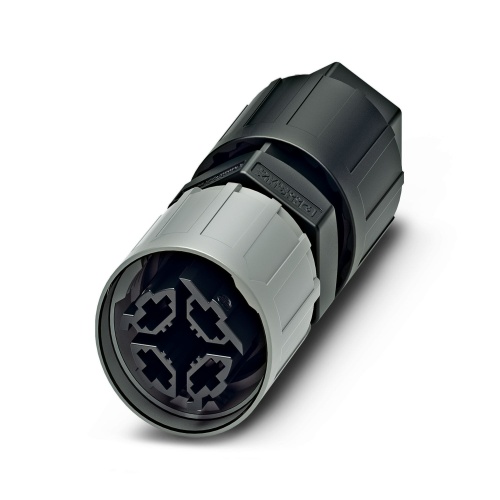

Phoenix Contact 1414705 Connector QPD P 2PE1,5 4-9 BK
Normally In Stock
Code: 237747
Phoenix Contact 1414705 - Connector - 3 Positions - Cu - 20 AWG - 17.5 Amp - 690 V - IP66 - Screw Locking
Condition: New
Usually ships Same Day or Next Day$14.27
Sale Price
$11.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1414705 The QPD connector is a product family offering IDC connections in various configurations, including 2+PE (pin enable) settings ranging from 0.5 to 1.5 mm². The connectors feature PA material, a black color scheme, and are equipped with a QUICKON nut for secure connection. They also support an external cable diameter of 7 mm to 9.5 mm.
Specifications
Connector Amperage
17.5 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
3
Sub Component
Installation Connector
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Easy maintenance – the connectors enable fast device replacement and preassembled cables simplify startup
