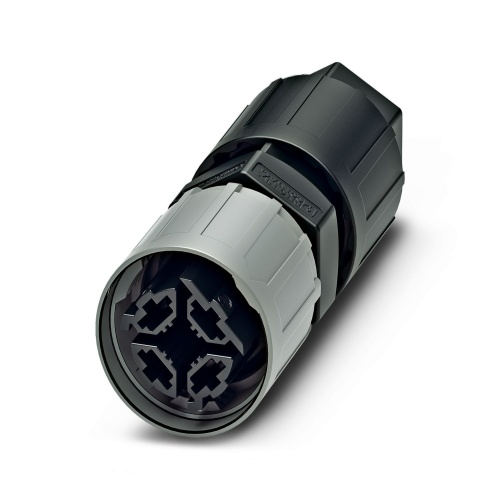

Phoenix Contact 1414704 Connector QPD P 3PE1,5 8-13 BK
Normally In Stock
Code: 237746
Phoenix Contact 1414704 - Connector - 4 Positions - Cu - 20 AWG - 17.5 Amp - 690 V - IP66 - Screw Locking
Condition: New
Usually ships Same Day or Next Day$17.12
Sale Price
$14.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1414704 The product is part of a connector family called QPD, featuring an IDC connection method and accommodating up to 3+PE pin positions ranging from 0.5mm2 to 1.5mm2 in size, operating at a voltage of 690V and current of 17.5A with a black PA material finish, secured by a QUICKON nut, and supported by an external cable with a diameter spanning from 10mm to 13mm.
Specifications
Connector Amperage
17.5 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Installation Connector
Connector Voltage
690 Volt
Features
Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
Easy maintenance – the connectors enable fast device replacement and preassembled cables simplify startup
