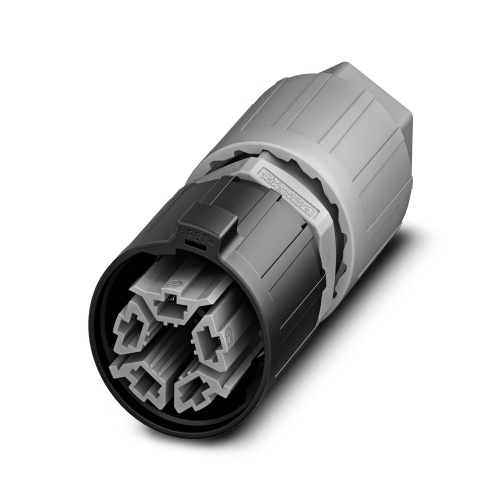

Phoenix Contact 1403783 Connector QPD P 4PE2,5 6-11 GY
Normally In Stock
Code: 236962
Phoenix Contact 1403783 - Connector - 5 Positions - Cu - 16 AWG - 20 Amp - 690 V - IP66 - Screw Locking
Condition: New
Usually ships Same Day or Next Day$17.93
Sale Price
$14.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1403783 The connector is part of a product family called QPD and can be connected using an IDC connection. It has four or more positions for pin edges, with wire gauges ranging from 1mm² to 2.5mm². The maximum operating voltage is 690V and the maximum current rating is 20A, indicating it's designed for high-power applications. Additionally, the connector is available in gray color and comes with an external cable diameter of either 6mm or 11mm.
Specifications
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Installation Connector
Connector Voltage
690 Volt
Features
The right connection technology for every application: fast IDC contact, easy Push-in Technology, and proven screw connection
3- and 5-pos. versions, enabling a high power density in a compact design
High degree of reliability with robust housings with IP66/IP68/IP69 degree of protection and IK07 shock resistance
Quick and easy assembly without special tools
Flexible power distribution design with fixed and pluggable versions
The electronics are thoroughly protected as the housing does not need to be opened, even when connecting the power supply
