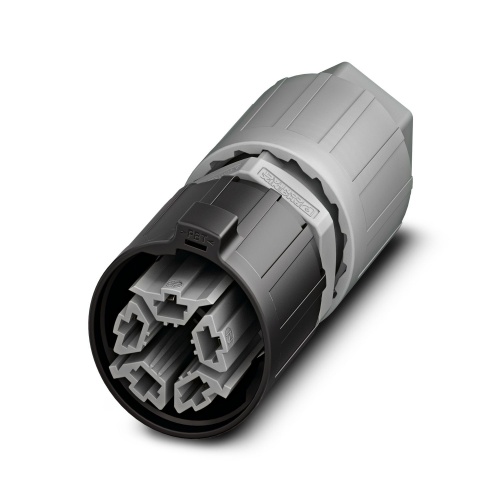

Phoenix Contact 1403781 Connector QPD P 4PE2,5 9-16 GY
Normally In Stock
Code: 236960
Phoenix Contact 1403781 - Connector - 5 Positions - Cu - 16 AWG - 20 Amp - 690 V - IP66 - Screw Locking
Condition: New
Usually ships Same Day or Next Day$17.93
Sale Price
$14.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1403781 The connector is part of a product family called QPD and uses an IDC connection method. It features 4+PE (pairs plus earth) positions for various sizes of wires, ranging from 1 mm2 to 2.5 mm2, with a maximum voltage rating of 690 V and a current rating of 20 A. The connector is designed in a PA (plastic) material and has an external cable diameter of 9 mm to 16 mm.
Specifications
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Installation Connector
Connector Voltage
690 Volt
Features
The right connection technology for every application: fast IDC contact, easy Push-in Technology, and proven screw connection
3- and 5-pos. versions, enabling a high power density in a compact design
High degree of reliability with robust housings with IP66/IP68/IP69 degree of protection and IK07 shock resistance
Quick and easy assembly without special tools
Flexible power distribution design with fixed and pluggable versions
The electronics are thoroughly protected as the housing does not need to be opened, even when connecting the power supply
