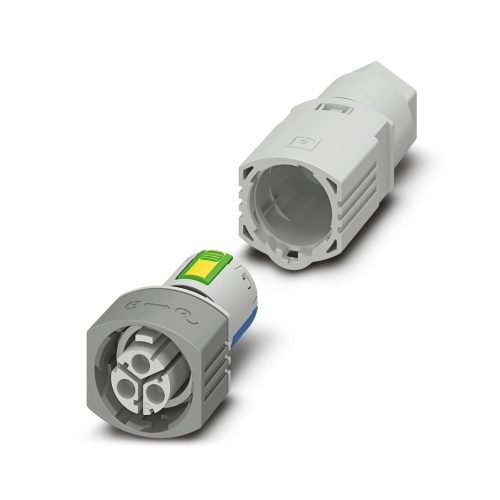

Phoenix Contact 1088674 Connector IPD PL 3P2,5 F GY
Normally In Stock
Code: 236080
Phoenix Contact 1088674 - Connector - 3 Positions - Cu - 20 AWG - 20 Amp - 500 V - IP66 - Push-Lock Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$14.66
Sale Price
$12.22
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1088674 The connector product family is IPD, featuring a push-lock connection with multiple positions available for a total of two plus a polarity indicator. The socket has varying cross-sectional areas from 0.5 to 2.5mm² and operates at 500V with a maximum current capacity of 20A. Its color code is P and the external cable diameter ranges from 6 to 9mm, with some options available in diameters as small as 8 or as large as 13mm, all within a light gray finish.
Specifications
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
3
Sub Component
Installation Connector
Connector Voltage
500 Volt
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies

Code: 236080
Phoenix Contact 1088674 Connector IPD PL 3P2,5 F GY
$14.66
Sale Price
$12.22
