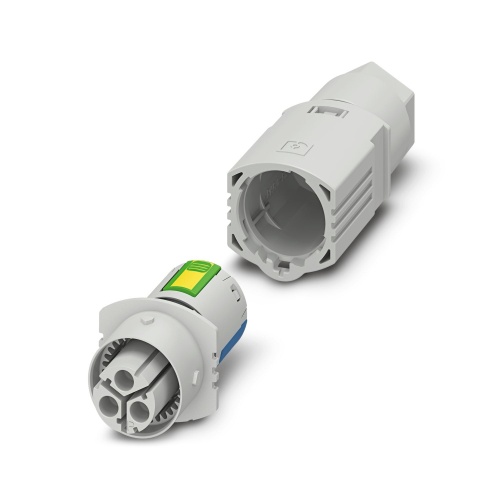

Phoenix Contact 1088673 Connector IPD P 3P2,5 F GY
Normally In Stock
Code: 236079
Phoenix Contact 1088673 - Connector - 3 Positions - Cu - 20 AWG - 20 Amp - 500 V - IP66 - Push-Lock Connection - Snap-In Locking
Condition: New
Usually ships Same Day or Next Day$13.98
Sale Price
$11.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1088673 The product family includes a connector with a push-lock connection for connections up to 2+PE, a socket that accommodates copper conductors with cross-sectional areas between 0.5mm² and 2.5mm², rated for 500V and 20A of current capacity. The part is designated as PA, has a light gray color, and features an external cable diameter ranging from 6mm to 9mm or 8mm to 13mm with coding 'P'.
Specifications
Connector Amperage
20 Amp
Connector Material
Cu
Connector protection
IP66
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
3
Sub Component
Installation Connector
Connector Voltage
500 Volt
Features
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
