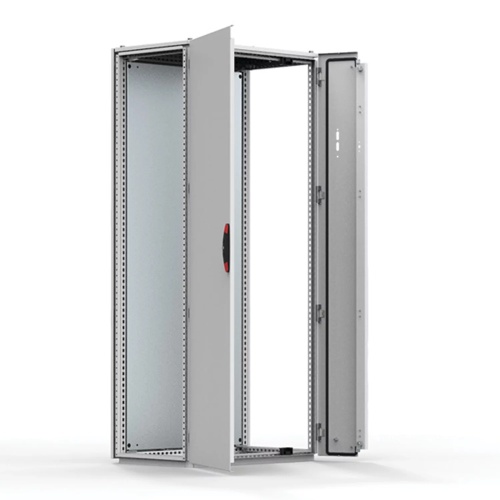

nVent Hoffman MCF18084R5 Flange Mount Disconnect, MCF, 1800x800x400mm, Zinc Plated, Mild Steel
Code: 232081
nVent Hoffman MCF18084R5 Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole patternDoor: Mounted with four hinges including door frame with 25 mm hole pattern; door can not be reversedFlange door: Surface mounted with hinges, locked from the inside, including universal cut-outRear panel: Fitted by M6 torx screws; standard facilities for rear doors mountingSupplied as an accessoryRemovable roof panelLock, left door: Espagnolette 4-point locking system which does not interfere with the enclosure inner space; standard double-bit lock with 3 mm insertBottom plate: Consists of three pieces.Mounting plate: Double folded and adjustable in depth by steps of 25 mm, with the MPD02 accessoryEarthing/Grounding: All panels are earthed/grounded through their fittings and equipped with a separate earthing studMounting requirements: Standard delivery ready for combined installation; sides of the group of combined enclosures must be closed with side panels SPMDelivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame and includes earthing bolts
Condition: New
Usually ships Same Day or Next Day$3053.10
Sale Price
$2544.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman MCF18084R5 Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole patternDoor: Mounted with four hinges including door frame with 25 mm hole pattern; door can not be reversedFlange door: Surface mounted with hinges, locked from the inside, including universal cut-outRear panel: Fitted by M6 torx screws; standard facilities for rear doors mountingSupplied as an accessoryRemovable roof panelLock, left door: Espagnolette 4-point locking system which does not interfere with the enclosure inner space; standard double-bit lock with 3 mm insertBottom plate: Consists of three pieces.Mounting plate: Double folded and adjustable in depth by steps of 25 mm, with the MPD02 accessoryEarthing/Grounding: All panels are earthed/grounded through their fittings and equipped with a separate earthing studMounting requirements: Standard delivery ready for combined installation; sides of the group of combined enclosures must be closed with side panels SPMDelivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame and includes earthing bolts
Specifications
Enclosure Mount Type
Free-Standing
Freestanding Enclosure Base Type
Floor Mount
Enclosure Depth
15.75"
Enclosure Width
31.5"
Enclosure Height
70.87"
Component
Modular Disconnect Enclosure
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Composition
Steel
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
Side panels: Supplied as an accessory.
Door: Mounted with four hinges. Including door frame with 25 mm hole pattern. Door can not be reversed. Flange door: Surface mounted with hinges, locked from the inside, including universal cut-out.
Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
Roof panel: Removable.
Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
Material: Frame: 1.5 mm painted steel. Doors: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
Lock: Lock, left door: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories. Lock, right door: Top and bottom lock with double-bit for easy opening of the door. Double-bit 3 mm insert and 90° movement. Other inserts are available as an accessory.
Finish: RAL 7035 structured powder coating.
Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
Mounting plate: Double folded and adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
Bottom plates: Consists of three pieces
Protection: Complies with IP 55 | TYPE 12 | IK 10.
Mounting requirements: Standard delivery ready for combined installation. Sides of the group of combined enclosures must be closed with side panels SPM. The interlocking kit, FMD, is included in standard delivery and compatible with the most popular electrical switched. To complete the interlocking system for bayed configurations, add FMA, FMB and FMS.
Delivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
