Code: 231276

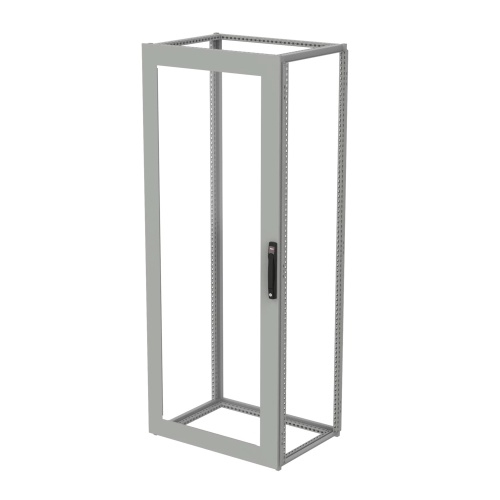

nVent Hoffman P2DWO1616 ProLine G2 Window Overlapping Double Doors, fits 1600x1600mm, Aluminum, Polycarbonate
nVent Hoffman P2DWO1616 Safety glass or polycarbonate (for food and beverage applications)Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetimeClean, contemporary designWindow doors available for frames up to 1000 mm wide0.25 in. (6.35 mm) thick window to provide maximum protection and viewing areaStandard door bar system on all window doors for easy accessories attachmentLow-profile Swing Handle with key lock; other options availableSeamless polyurethane gasket (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminantsTimed latch engagement to ensure top and bottom of door catch reliablyDurable, double-flanged latch rod and three Delrin® rollers to prevent metal-on-metal grinding3-point latch system for doors ≥ 1000mm in heightDoors can be hinged on left or right (default left)14-degree hinging standard (180-degree hinge option available)Door can be reversed without removing the side coversCan be used on front or rear of the ProLine G2 frame; can be used on the sides with side door adapter (not included)Two grounding studsAll mounting hardware included
Condition: New
Usually ships Same Day or Next Day$4102.72
Sale Price
$3418.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman P2DWO1616 Safety glass or polycarbonate (for food and beverage applications)Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetimeClean, contemporary designWindow doors available for frames up to 1000 mm wide0.25 in. (6.35 mm) thick window to provide maximum protection and viewing areaStandard door bar system on all window doors for easy accessories attachmentLow-profile Swing Handle with key lock; other options availableSeamless polyurethane gasket (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminantsTimed latch engagement to ensure top and bottom of door catch reliablyDurable, double-flanged latch rod and three Delrin® rollers to prevent metal-on-metal grinding3-point latch system for doors ≥ 1000mm in heightDoors can be hinged on left or right (default left)14-degree hinging standard (180-degree hinge option available)Door can be reversed without removing the side coversCan be used on front or rear of the ProLine G2 frame; can be used on the sides with side door adapter (not included)Two grounding studsAll mounting hardware included
Specifications
Component
Window Door
Line
PROLINE G2
Manufacturer
Hoffman
Fits Frame
1600 mm X 1600 mm
Features
0.25 in. (6.35 mm) thick window to provide maximum protection and viewing area
Clean, contemporary design
Window doors available for frames up to 1000 mm wide
Standard door bar system on all window doors for easy accessories attachment
Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetime
Safety glass or polycarbonate (for food and beverage applications)
Low-profile Swing Handle with key lock, other options available
3-point latch system for doors ≥ 1000mm in height
Durable, double-flanged latch rod and three Delrin® rollers to prevent metal-on-metal grinding
Timed latch engagement to ensure top and bottom of door catch reliably
Seamless polyurethane gasket (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
Doors can be hinged on left or right (default left)
14-degree hinging standard (180-degree hinge option available)
Can be used on front or rear of the ProLine G2 frame, can be used on the sides with side door adapter (not included)
Two grounding studs
All mounting hardware included
Door can be reversed without removing the side covers
