Code: 224281

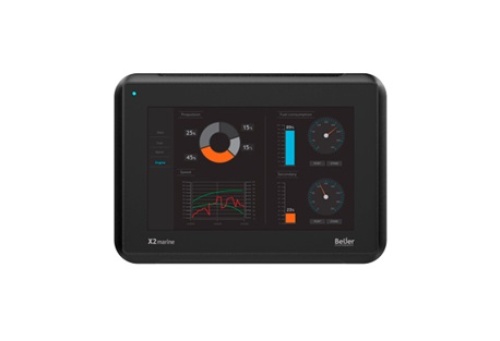

Beijer 630008705 HMI Screen X2 marine 7 HB
Normally In Stock
Beijer 630008705 HMI Screen X2 marine 7 HB HMI Screen 7" screeen, 800x480 resolution, DOES NOT INCLUDE LICENSE KEY FOR DEVELOPER SOFTWARE 1 GHz Quad ARM Cortex A9 CPU processor, 2 GB RAM, Color display.
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2892.96
Sale Price
$2410.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Beijer 630008705 X2 marine 7 HB Graphic, resistive touch, aluminum, panel mount operator terminal. 800x480 pixels (16:9), LED backlit 7" TFT-LCD color display, 1000 cd/m² marine dimmable, 1 GHz quad ARM Cortex-A9 CPU, 2 GB RAM, 2 GB MLC NAND flash, 2x Ethernet, 1x3 serial ports, 2x USB 2.0, 1x SD, 2xDO solid state relay (0.5A), 24 VDC power supply, -15 to 55 C operating temperature, IP65, CE, FCC, KCC, NEMA 4x/12, UL Type 4x/12 approvals plus DNV, KR, GL, LR, ABS, CCS, EN60945 marine approvals. Includes iX Runtime. WEC2013 Professional. Black, non-branded front.
Specifications
HMI & PC Display Color
Full Color
HMI & PC Memory (RAM)
2 GB
HMI & PC Screen Display Resolution
800 X 480
Component
HMI Screen
Manufacturer
Beijer
HMI & PC Screen Display Size
7"
HMI & PC Processor
1 Ghz Quad ARM Cortex A9 CPU
Features
X2 marine HMI panels offer user-friendly, reliable operation off-shore, on ships and in other maritime applications.
With black frame and nautical society certifications, panels are suitable for mounting on the bridge, in the engine room and inside cabins.
X2 marine panels are available with optional high brightness display and integrated CODESYS PLC functionality.
