Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

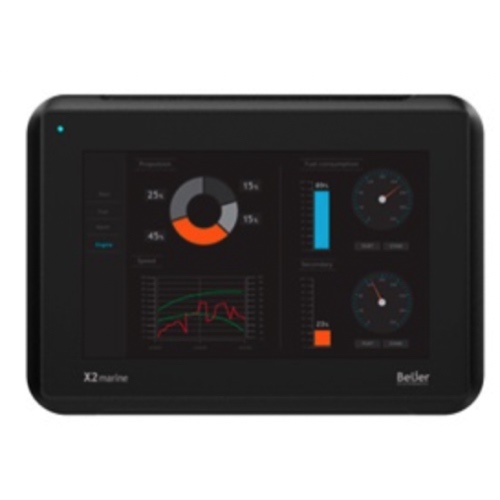

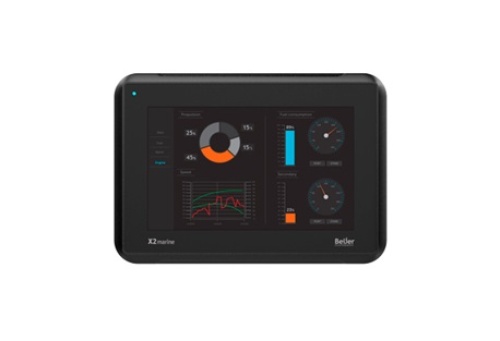

Beijer 630002505 HMI Screen X2 marine 7
Normally In Stock
Code: 224280
Beijer 630002505 HMI Screen X2 marine 7 HMI Screen 7" screeen, 800x480 resolution, DOES NOT INCLUDE LICENSE KEY FOR DEVELOPER SOFTWARE 1 GHz Single Cortex A9 CPU processor, 2 GB RAM, Color display.
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1975.68
Sale Price
$1646.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Beijer 630002505 X2 marine 7 Graphic, resistive touch, aluminum, panel mount,operator terminal. 800x480 pixels (16:9), LED backlit 7" TFT-LCD color display, 500 cd/m² marine dimmable, 1 GHz single Cortex-A9 CPU, 512 MB RAM, 2 GB MLC NAND flash, 1x Ethernet, 1x3 serial ports, 1x USB 2.0, 1x SD, 24 VDC power supply, -15 to 55 C operating temperature, IP65, CE, FCC, KCC, NEMA 4x/12, UL Type 4x/12 approvals plus DNV, KR, GL, LR, ABS, CCS, EN60945 marine approvals. Includes iX Runtime. WEC2013 Entry. Black, Beijer-branded front.
Specifications
HMI & PC Display Color
Full Color
HMI & PC Memory (RAM)
2 GB
HMI & PC Screen Display Resolution
800 X 480
Component
HMI Screen
Manufacturer
Beijer
HMI & PC Screen Display Size
7"
HMI & PC Processor
1 Ghz Single Cortex A9 CPU
Features
X2 marine HMI panels offer user-friendly, reliable operation off-shore, on ships and in other maritime applications.
With black frame and nautical society certifications, panels are suitable for mounting on the bridge, in the engine room and inside cabins.
X2 marine panels are available with optional high brightness display and integrated CODESYS PLC functionality.
Downloads
Code: 224280
Beijer 630002505 HMI Screen X2 marine 7
$1975.68
Sale Price
$1646.40
