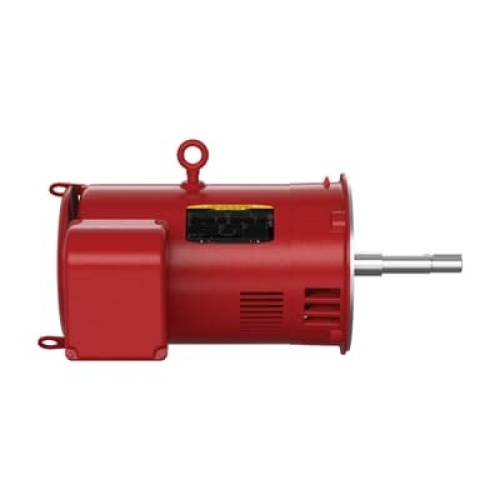

Baldor VJPFPM2538T 40 or 30HP, 3500 or 2910RPM, 3PH, 60 or 50HZ, 286J
Normally In Stock
Code: 221124
Baldor VJPFPM2538T 3 380.0 V @ 50 HZ
230.0 V @ 60 HZ
190.0 V @ 50 HZ
460.0 V @ 60 HZ 30 HP @ 50 HZ
40 HP @ 60 HZ Open Slotted Band
Condition: New
CALL FOR LEAD TIME$5520.23
Sale Price
$4600.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor VJPFPM2538T 3 380.0 V @ 50 HZ
230.0 V @ 60 HZ
190.0 V @ 50 HZ
460.0 V @ 60 HZ 30 HP @ 50 HZ
40 HP @ 60 HZ 2910 RPM
3500 RPM,3000 RPM @ 50 HZ 90 A @ 230.0 V
84 A @ 190.0 V
45 A @ 460.0 V
42 A @ 380.0 V 50.00 Hz
60.00 Hz Steel Open Slotted Band
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
30 HP
Motor Horsepower
40 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor Amperage (Full Load)
45 Amp
Motor Frame Model
286JP
Motor Amperage (Full Load)
84 Amp
Motor Amperage (Full Load)
90 Amp
Motor NEMA Design
NEMA Design G
Motor Voltage
380 Volt
Motor Frequency
50 Hz
Motor RPM's
3000 RPM
Motor Enclosure Type
Open Slotted Band
Motor Voltage
190 Volt
Motor Amperage (Full Load)
42 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
Compatible with centrifugal, submersible, and positive displacement pumps.
All motors meet or exceed NEMA Premium® efficiency energy requirements for US, Canada and Mexico.
Provides immediate power for pump startup in demanding applications.
Designed for extended service life with minimal maintenance needs.
Designed to handle prolonged operation without overheating or performance loss. In addition, ABB pump motors feature a dynamically balanced rotor, reducing noise and extending bearing life.
Pump motors are energy-efficient, durable, and designed to reduce environmental impact, promoting sustainability across industries.
Downloads
Code: 221124
Baldor VJPFPM2538T 40 or 30HP, 3500 or 2910RPM, 3PH, 60 or 50HZ, 286J
