Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

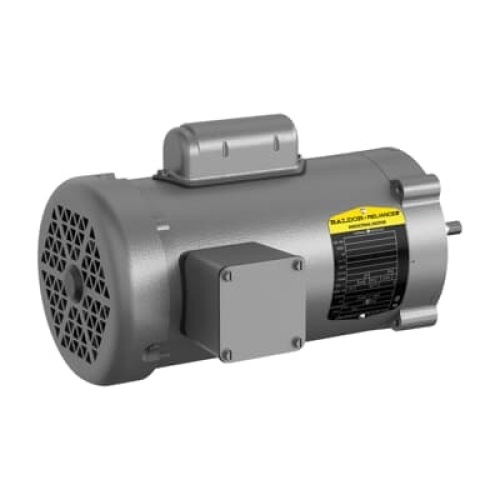

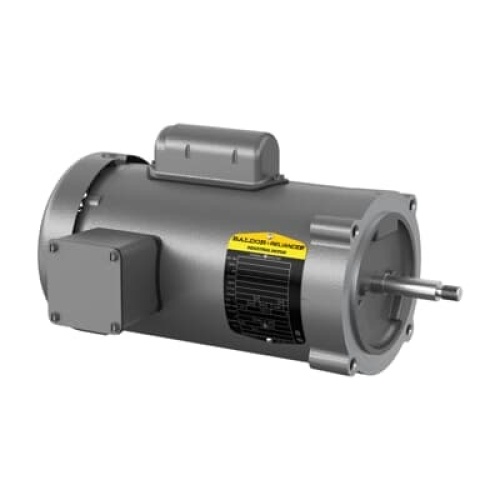

Baldor JL3501A .33HP, 1725RPM, 1PH, 60HZ, 56J, 3414L, Totally Enclosed Fan Cooled, F1
Normally In Stock
Code: 220650
Baldor JL3501A 1 230.0 V @ 60 HZ
115.0 V @ 60 HZ .330 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$653.18
Sale Price
$544.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor JL3501A 1 230.0 V @ 60 HZ
115.0 V @ 60 HZ .330 HP @ 60 HZ 1725 RPM,1800 RPM @ 60 HZ 3 A @ 230.0 V
3.600 A @ 208.0 V
6 A @ 115.0 V 60.00 Hz Steel Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor RPM's
1800 RPM
Motor Voltage
115 Volt
Motor Voltage Phases
1 Phase
Motor NEMA Design
NEMA Design L
Motor Horsepower
0.33 HP
Motor Amperage (Full Load)
3 Amp
Motor Amperage (Full Load)
6 Amp
Motor Insulation Class
Class B Insulation
Motor Frame Model
56J
Motor Amperage (Full Load)
3.6 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
Corrosion-resistant 300 series stainless steel hardware and shaft extension, two-part epoxy finish that is five times more resistant to corrosion and chipping than standard paint.
Sealed motor with neoprene gaskets, lip, v-ring seal on DE to keep moisture from entering the motor.
Simple maintenance with four removable condensation drain plugs for complete drainage, regardless of position to extend the life of the motor.
White Washdown line comes in single and three phase, pump designs, brake motors, shaft grounding, and sinewave and inverter duty.
By utilizing sealed bearings, relubrication and maintenance is minimized
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
Code: 220650
Baldor JL3501A .33HP, 1725RPM, 1PH, 60HZ, 56J, 3414L, Totally Enclosed Fan Cooled, F1
