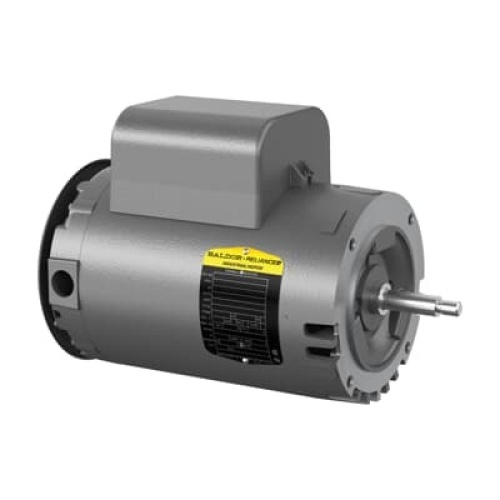

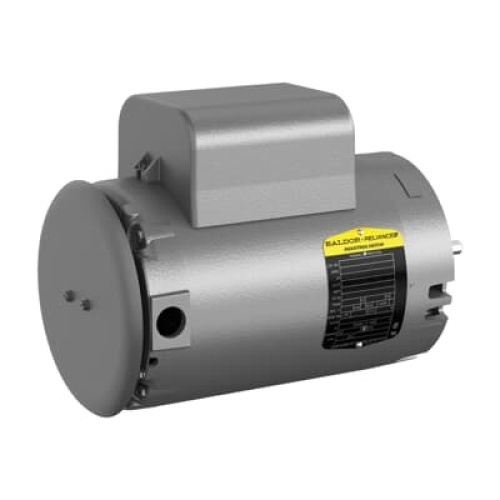

Baldor JL1323A 3HP, 3450RPM, 1PH, 60HZ, 56J, 3535LC, OPEN, F1
Normally In Stock
Code: 220648
Baldor JL1323A 1 230.0 V @ 60 HZ 3 HP @ 60 HZ OPEN
Condition: New
CALL FOR LEAD TIME$1221.54
Sale Price
$1017.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor JL1323A 1 230.0 V @ 60 HZ 3 HP @ 60 HZ 3450 RPM,3600 RPM @ 60 HZ 13 A @ 230.0 V 60.00 Hz Steel OPEN
Specifications
Motor Insulation Class
Class F Insulation
Motor Horsepower
3 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor RPM's
3600 RPM
Motor Voltage Phases
1 Phase
Motor Amperage (Full Load)
13 Amp
Motor NEMA Design
NEMA Design K
Motor Enclosure Type
Open
Motor Frame Model
56J
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
Corrosion-resistant 300 series stainless steel hardware and shaft extension, two-part epoxy finish that is five times more resistant to corrosion and chipping than standard paint.
Sealed motor with neoprene gaskets, lip, v-ring seal on DE to keep moisture from entering the motor.
Simple maintenance with four removable condensation drain plugs for complete drainage, regardless of position to extend the life of the motor.
White Washdown line comes in single and three phase, pump designs, brake motors, shaft grounding, and sinewave and inverter duty.
By utilizing sealed bearings, relubrication and maintenance is minimized
Suitable for inverter use per NEMA MG1 Part 31.4.4.2
