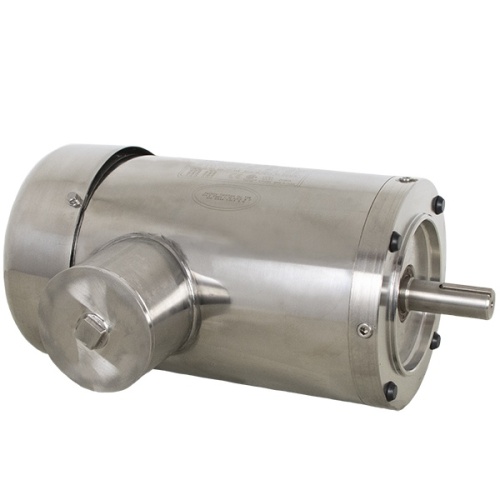

NAE SS56C1/2M-4 Electric Motor Washdown Duty, 208-230 Volt, 460 Volt, 3 Phase, 0.5 HP, 0.8 Amp
Normally In Stock
Code: 217630
NAE SS56C1/2M-4 Electric Motor 1/2 HP, 1800 RPM, 56C Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Feet
Condition: New
Usually ships Same Day or Next Day$611.68
Sale Price
$509.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE SS56C1/2M-4 Electric Motor 1/2 HP, 1800 RPM, 56C Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Feet
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Voltage
208-230 Volt
Manufacturer
North American Electric Motors
Motor Frame Model
56C
Motor Horsepower
0.5 HP
Motor Amperage (Full Load)
0.8 Amp
Motor Frame Construction
Stainless Steel
Features
.33-20 HP in stock
Service factor: 1.15 @ 60 Hz, 1.0 @ 50 Hz
NEMA Design B Performance/ High starting torque
Round conduit box for easy cleaning
Encapsulated windings
Dual-drilled feet for mounting flexibility
Double sealed bearings on both ends
2-year warranty
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
IP66 protection
Condensation drains with plugs
NEMA MG-1, Table 12-12
40° C ambient continuous duty
Dual voltage ratings suitable for part wind start on lower voltage
Windings rated for 2200V peak voltage spikes
.304 stainless steel shaft and body
