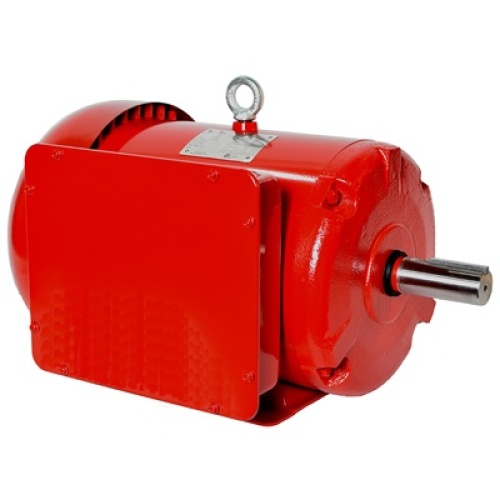

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

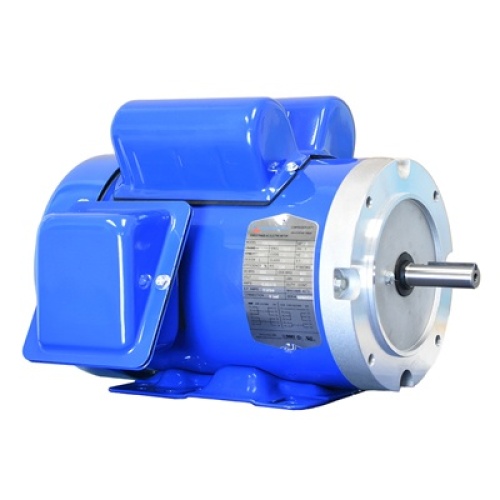

NAE F56C1.5S2C Electric Motor General Purpose Rolled Steel, 115 Volt, 208-230 Volt, 1 Phase, 1.5 HP, 12.47 Amp, 6.89-6.23
Normally In Stock
Code: 216719
NAE F56C1.5S2C Electric Motor 1.5 HP, 3600 RPM, 56C Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel
Condition: New
Usually ships Same Day or Next Day$276.32
Sale Price
$230.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE F56C1.5S2C General Purpose Rolled Steel Electric Motor used for Pumps; Fans; Blowers; Compressors; Conveyors; Farm equipment; Other industrial and commercial machinery; Damp, dusty or dirty environments> Service factor: 1.15 @ 60 Hz; NEMA Design B Performance/ High starting torgue; Removable feet; 56CH frames: Dual-drilled feet for 56C and 143/ 5T mounting flexibility; Capacitor start/ capacitor run design. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware and aluminum endbells; IP55 protection; Condensation drain with plugs. Sealed bearings; 2-year warranty
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Insulation Class
Class F Insulation
Motor Horsepower
1.5 HP
Motor Frequency
60 Hz
Motor RPM's
3600 RPM
Motor Voltage
115 Volt
Motor Voltage
208-230 Volt
Motor Voltage Phases
1 Phase
Motor NEMA Design
NEMA Design L
Motor Frame Construction
Rolled Steel
Manufacturer
North American Electric Motors
Motor Amperage (Full Load)
12.47 Amp
Motor Frame Model
56C
Motor Amperage (Full Load)
6.89 - 6.23
Features
Service factor: 1.15 @ 60 Hz
NEMA Design B Performance/ High starting torgue
Removable feet
56CH frames: Dual-drilled feet for 56C and 143/ 5T mounting flexibility
Capacitor start/ capacitor run design
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware and aluminum endbells
IP55 protection
Condensation drain with plugs
Sealed bearings
2-year warranty
